BURLINGTON CHELSEA BASIN MIXER TAP SPARES

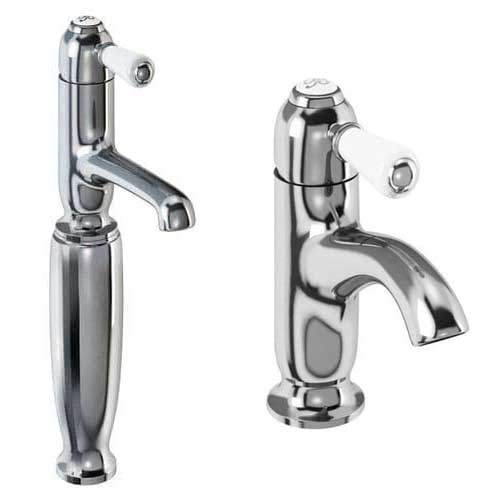

Tap Magician Replacement spares to fit the Burlington Chelsea Basin Mixer models CHE1, CHE2, CH19, CH20, CH21, CH22, CH23.

If your tap is dripping or leaking out of the spout then it is time to replace / change the cartridge.

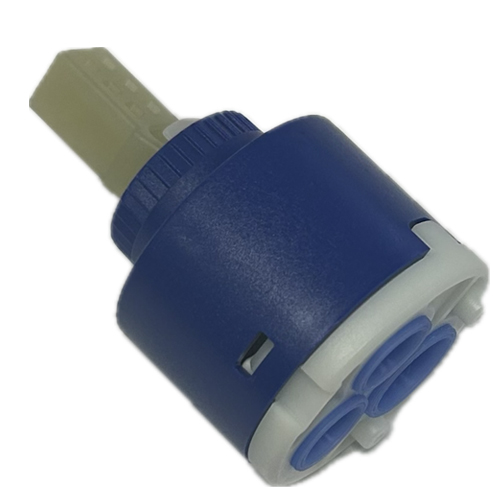

Burlington Chelsea Cartridge known by spare part code SP579.

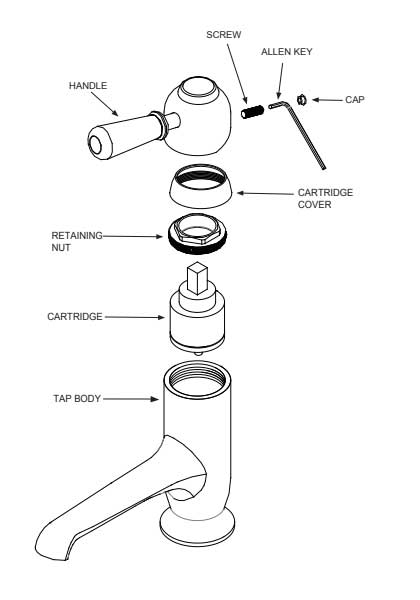

How to remove the basin tap handle?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 2. Pull the handle away from the tap body.
Step 3. Unscrew decorative shroud from the tap body anticlockwise.
Step 4. Use an adjustable spanner to undo the cartridge locking nut.
Step 5. Remove old cartridge from the tap body.
Step 6. Fit your new cartridge in place and reverse the steps to refit the handle.


Watch our video below for guidance / how to change your single lever basin tap.
