BRISTAN SIGMA EASYFIT KITCHEN TAP SPARES

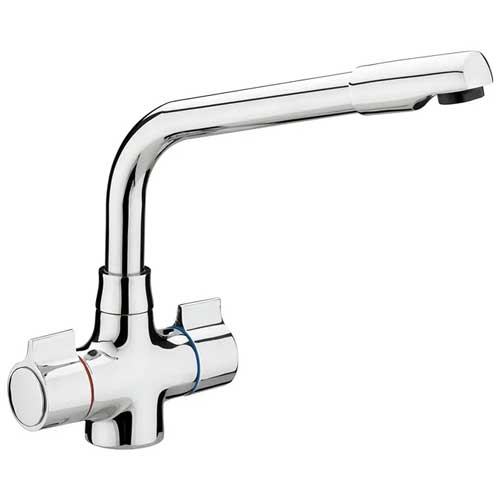

Tap Magician Compatible Replacements for Bristan Sigma Easy Fit Monobloc Kitchen Sink Mixer S-SNK-EF-C.

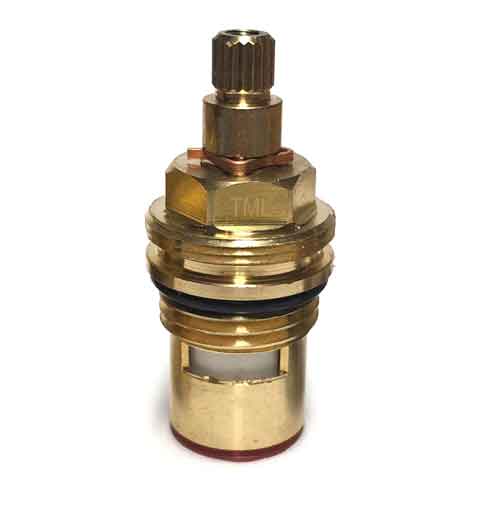

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
This is the Easyfit Sigma model which has 20 spline on the teeth known original cartridge known by coding 210V10288NT-FEU09.

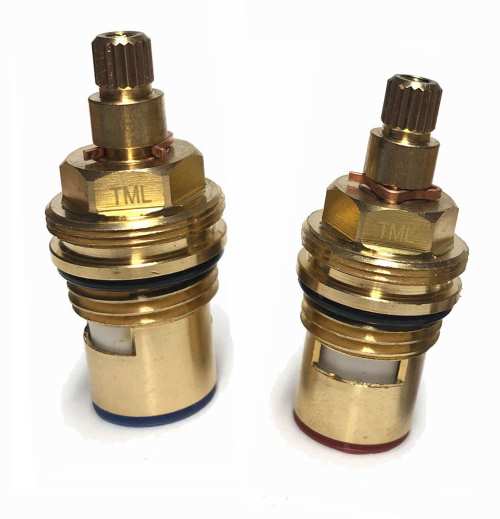

Replacement BSP ½ hot and cold cartridges available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
Replacement spout oring kit available as SK22-S.

Replacement Anti-Splash Assembly available as SRBLK-S.

How to remove the Bristan Sigma handle:
1. Remove end cap from end of handle
2. Undo screw using crosshead screwdriver.
3. Pull handle off.
4. Use adjustable spanner to undo cartridge anticlockwise.
5. Screw new cartridge in clockwise.
