LEISURE AQUALUXE SPARES.


Tap Magician compatible spares / parts to repair the Leisure Aqualuxe Kitchen mixer monobloc tap TAQLUXECM.

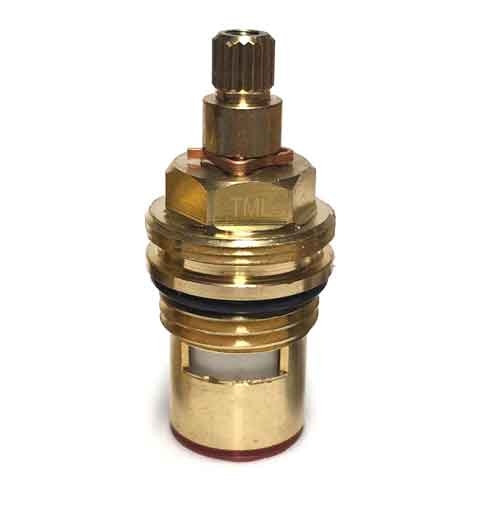

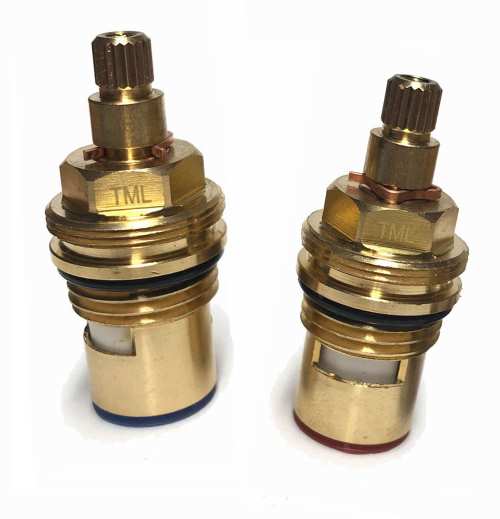

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Cartridge has 20 teeth on spline.

Replacement tap chrome base ring / plinth available (compatible with 133.0068.833)

For guidance / instructions of how to replace a tap valve step by step please click here

Your valve may come out stuck inside the brass bush (original code SP3408 / 3408R / 133.0069.391)./ If you cannot separate or the tap is leaking at the handle joint you will need to purchase together with the new bush.

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by 1239R SP1239.

Sometimes replacing the o rings does not stop the leak and this can be due to damage on the spout itself or pin holes. If this happens we have a complete replacement spout available in chrome (SPOUT01C-S) and brushed chrome (SPOUT01CB-S). Spout comes complete with locking collar (1243R) O'rings and aerator.

If you require a new antisplasher /aerator this is our part SR63C/CB (available in Chrome or brushed) Original codes known by 133.0068.762 SP1263 /1263R your original part may have Neoperl stamped around the edge.

Replacement Lever handle available (Our handle is plain there is no H or C stamped on it) This is compatible with part SP3898 3898R 133.0314.656 133.0314.657
How to remove the handle and replace the cartridge (turn water off before starting these steps).
1. First remove screw cover on the end of the handle. We supply replacement indices should you break or damage these.
2. Use appropriate screwdriver to remove screw holding handle in place 3. The handle will then pull off.
4. Use adjustable of 17mm spanner to undo cartridge. It will unscrew anticlockwise from the tap
5. Repeat steps in reverse order to fit the new cartridge and replace the handle.
6. Watch our video for more detailed step by step tutorial
How do I know if I need the bush or not?
The bush will either remain in the tap body or come out fused to the cartridge. Until you remove the cartridge you won't know if you need the bush. The bush can remain in the tap body on one side and come out fused to the cartridge on the other side.

You can find the Aqualuxe tap diagram/instructions below.
