BRISTAN DUNE KITCHEN TAP DU SNK C

Tap Magician compatible replacement parts to repair the Bristan Easy Fit Dune Kitchen Monobloc Tap DU SNK C
Watch video below for step by step tutorial how to replace the tap cartridges.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 670022205016. May have huanri stamped on body of cartridge.

Cartridge has 20 teeth on spline.

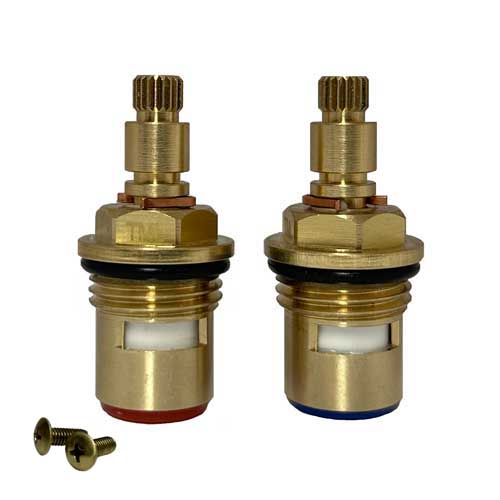

Replacement hot and cold cartridges available.

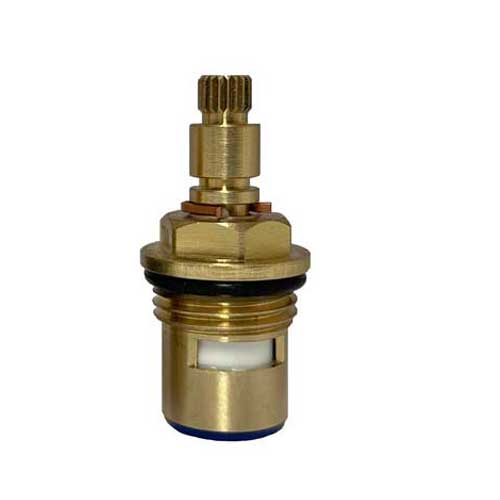

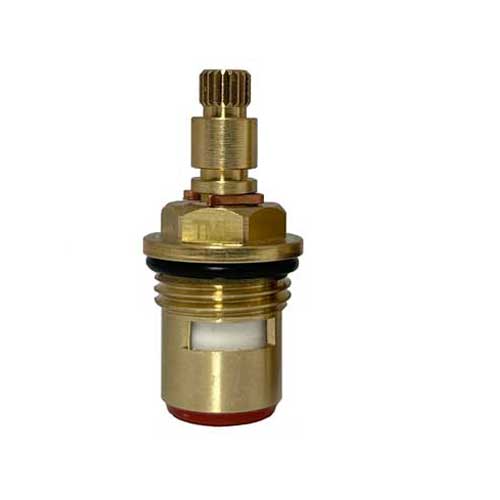

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
You can find the dune tap diagram/instructions below.

How do I remove the Bristan Dune Tap handle/head?
1. Remove screw covering cap from the end of the handle.
2. Use allen key to undo grub screw.
3. Pull tap head off.
4. Use 17mm or adjustable spanner to undo cartridge. Undo cartridge anticlockwise.
5. Replace new cartridge screwing in clockwise.
6. Replace handle.

How do I remove the cartridge from the tap?
Use our box spanner (STBOX) to undo cartridge (unscrews anticlockwise)

How do I stop my tap dripping?
If your tap is dripping you need to replace the cartridges. If you can isolate the supply to the hot and cold you can identify which side is leaking.
If you aren't able to identify which side has failed we recommend to replace both.
