CASCADE SPHERE MONOBLOC KITCHEN TAP SPARES

Tap Magician compatible replacement parts to repair the Cascade Sphere Monobloc Kitchen Mixer Tap.

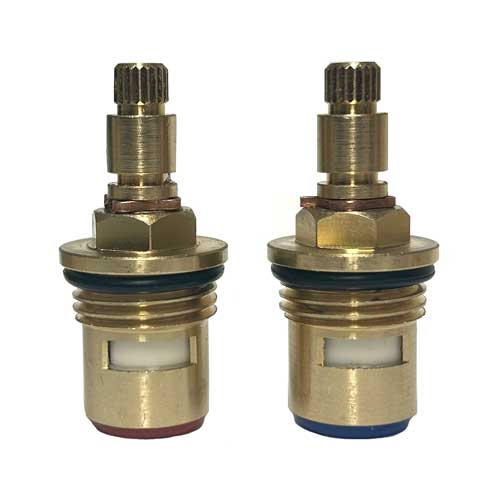

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Cartridge has 20 teeth on spline. Replacement hot and cold cartridges available.

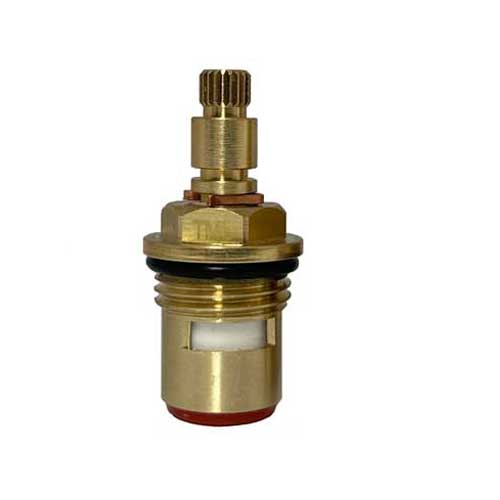

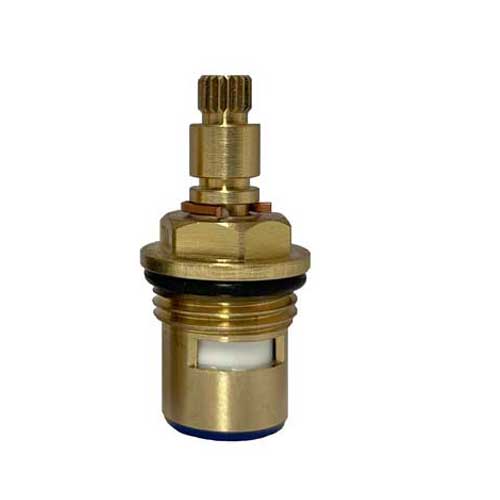

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.

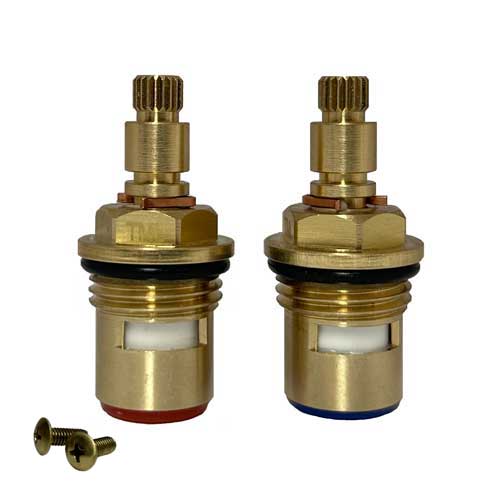

If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
Replacement spout aerator available as SR22X (Chrome).

Watch video below for step by step tutorial how to replace the tap cartridges.

How do I remove the Cascade Sphere Tap handle lever?
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the handle retaining screw, by using a 2.5mm allen key.
Step 2. Pull the handle away from the tap body.
Step 3. Use spanner to undo cartridge anticlockwise.
Step 4. Screw in the new cartridge clockwise.
Step 5. Tighten the cartridge enough to seal, but avoid over-tightening.
See tap diagram below.

How do I remove the cartridge from the tap?
Use our box spanner (STBOX) or adjustable spanner to undo cartridge (unscrews anticlockwise) .

How do I stop my tap dripping?
If your tap is dripping you need to replace the cartridges.
If you can isolate the supply to the hot and cold you can identify which side is leaking.
If you aren't able to identify which side has failed we recommend to replace both.
