NABIS MATESE MONOBLOC KITCHEN TAP SPARES

Tap Magician compatible spares / parts to repair the Nabis Matese Monobloc Kitchen Tap B08915.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
For guidance / instructions of how to replace a tap valve step by step please click here

Original spare part codes known by B09103 / WUK02.

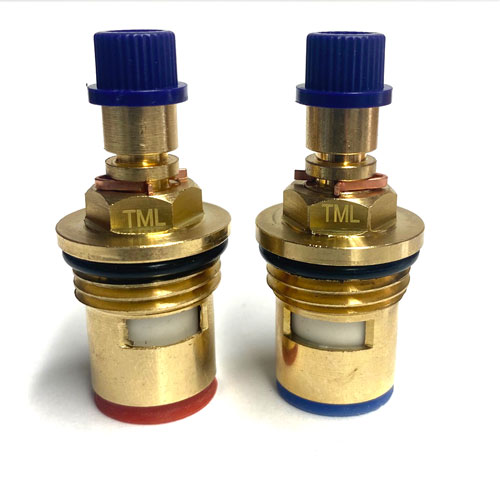

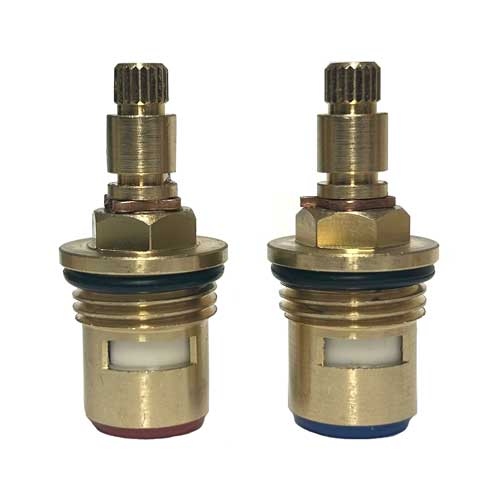

Nabis Matese cartridge has 20 teeth on spline. Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

The Matese Tap handle lever uses a handle adaptor known by spare part code B09115. Replacement available as SA44-S.

If your Nabis Matese tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.

If you require a new aerator you will need our SR22X-S (available in chrome).
Original codes known by B09116 / WUK23.

How to remove my Nabis Matese tap handle lever:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove indice from the underside of the handle.
Step 2. Used allen key to remove the handle retaining screw.
Step 3. The handle will then pull off.

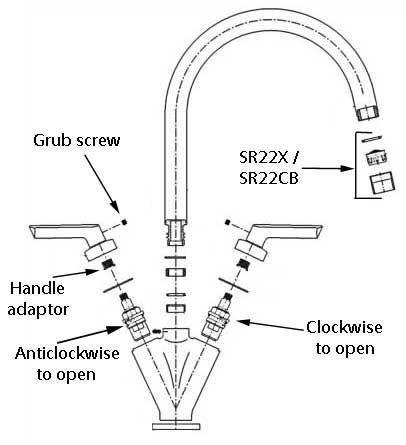

You can find the Nabis Matese tap diagram below.


Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.

How to identify my Nabis tap? How to repair and fix my leaking Nabis Matesetap? Nabis compatible spares available.

Product code: B08915
Manufacturer code: M3207Q CP
