TRAVIS PERKINS CHANTILLY KITCHEN TAP SPARES

Tap Magician compatible spare parts to repair the Travis Perkins Chantilly Monobloc Mixer Tap Chrome 546822,177007.

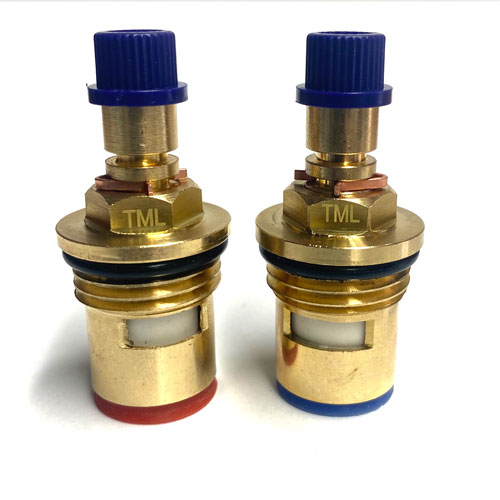

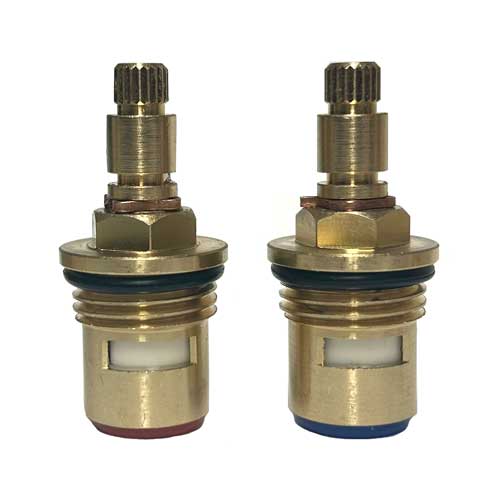

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original cartridge known by spare part code VS01-C20. Hot and cold valves available.

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

Cartridge has 20 splines and use a blue handle adaptor. Replacement available as SA44.

If your tap is leaking from the neck (where the spout joins the tap body) then the seal inside the spout needs replacing.
When you replace the new rubber seal they need greasing with a silicone grease.

If you require a new antisplasher / aerator this is our part SR22X-S (Chrome).

How to remove the Travis Perkins Chantilly handle and replace the cartridge:
Before replacing the cartridge you will need to turn the water off.
1. Unscrew vertical lever to access handle retaining grub screw
2. Use allen key to remove handle grub screw
3. Pull handle away from tap body
4. Use an adjustable spanner to remove the cartridge anticlockwise
