NABIS MONATE DECK KITCHEN TAP SPARES

Tap Magician compatible spares / parts to repair the Nabis Monate Deck kitchen mixer B08916.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
For guidance / instructions of how to replace a tap valve step by step please click here

Original spare part codes known by B09137 / WUK60.

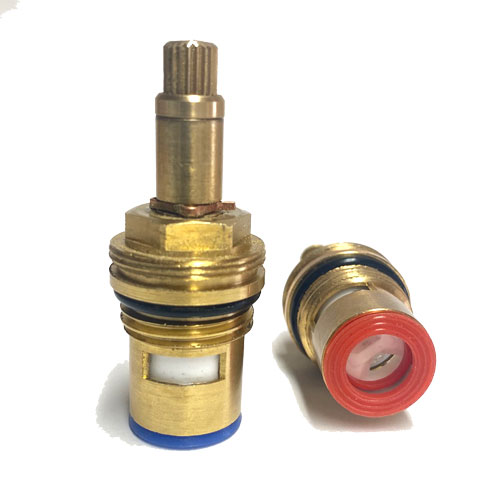

Nabis Monate Deck cartridge has 20 teeth on spline. Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

The Monate Deck tap handle lever uses a handle adaptor known by spare part code B09138. Replacement available as SA01BR-S.

If your Nabis Monate Deck tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.

If you require a new aerator you will need our SR22X-S (available in chrome).
Original codes known by B09116 / WUK23.

How to remove my Nabis Monate Deck tap handle lever:
Before replacing the cartridge you will need to turn the water off.
Step 1. You need to pull the handle off. There is no retaining screw.
Step 2. Use an adjustable spanner to undo the cartridge counterclockwise
Step 3. Screw in the new cartridge clockwise
Step 4. Tighten the cartridge enough to seal, but avoid over-tightening

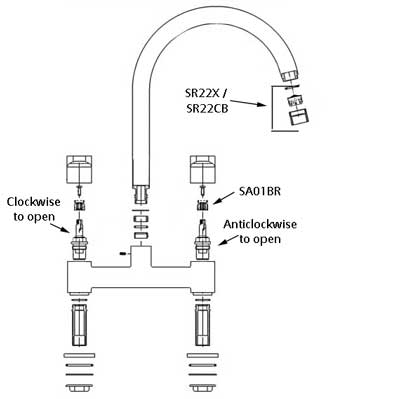

You can find the Nabis Monate Deck tap diagram below.


How to identify my Nabis tap? How to repair and fix my leaking Nabis Monate Deck tap? Nabis compatible spares available.

Product code: B08916
Manufacturer code: M9004QL
