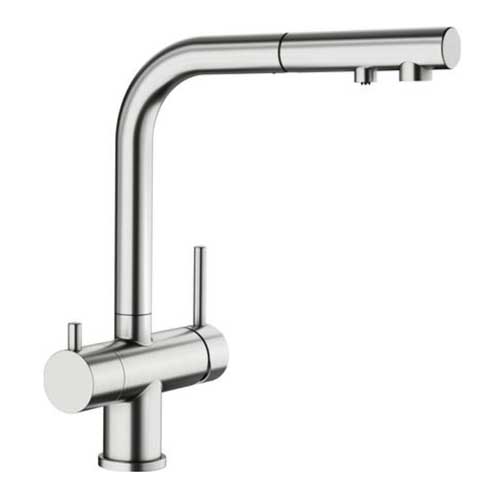

BLANCO FONTAS S II 3 in 1 KITCHEN TAP SPARES

Tap Magician compatible spares to fit the Blanco Fontas S II Filter kitchen tap models
525198, 526672, 527737, 527715, 525199
If your Blanco Fontas S II tap is dripping out of the spout then you need to replace the cartridges.

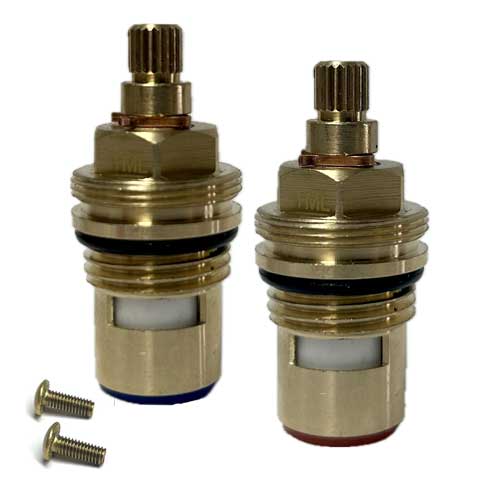

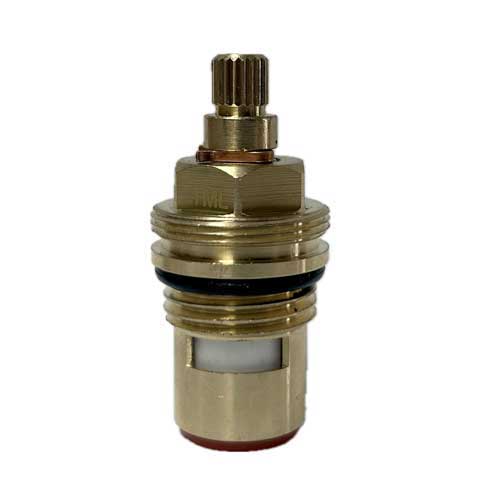

Original hot water cartridge known by spare part code 121643. Has 20 teeth on the spline.
The cold / filter water cartridge is known by spare part code 121894 HP 35mm open K-35A.

If your tap is leaking around the base of the spout (where the spout joins the tap body) then you need to replace the Spout seals/ O'Rings.

How to remove the handle on the Blanco Fontas S II Filter:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the screw cap cover on the underside of the handle. This will prise off.
Step 2. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 3. Pull handle away from tap body.
Step 4. Unscrew decorative shroud (Cold / Filter side) from the tap body anticlockwise.
Step 5. Use an adjustable spanner to undo the cartridge locking nut.
Step 6. Remove old cartridge from the tap body.
Step 7. Fit your new cartridge in place and reverse the steps to refit the handle.

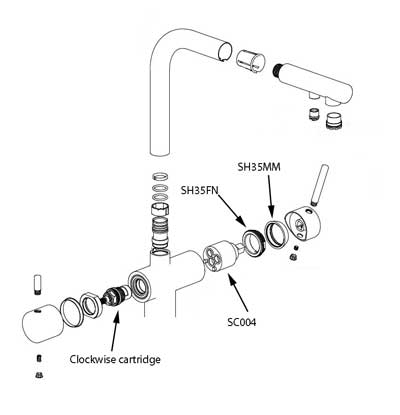

Blanco Fontas S II Filter tap instruction diagram below.
If you require a complete replacement tap for the Filtra you can purchase our Cox Filter Tap (3 Way) Which is an italian manufactured premium kitchen filter tap. This tap comes complete with a new filter system however it will also connect to your existing Blanco Filtra Filtration sytem if you wish to keep that.
