BLANCO TRIMA FILTER KITCHEN TAP SPARES

Tap Magician compatible spares to fit the Blanco Trima Filter Kitchen Tap 520840, 526273.
If your Blanco Trima tap is dripping out of the spout then you need to replace the cartridges.

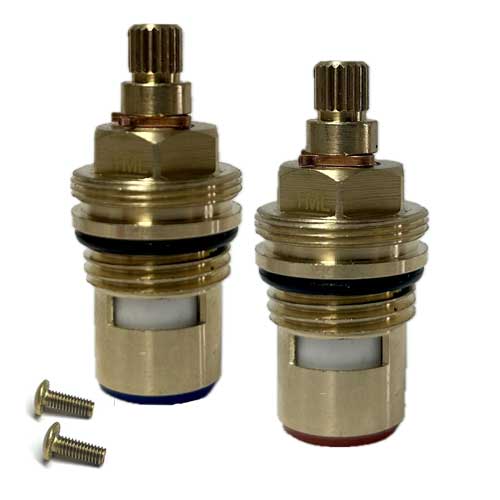

Original hot water cartridge known by spare part code 121643. Has 20 teeth on the spline.

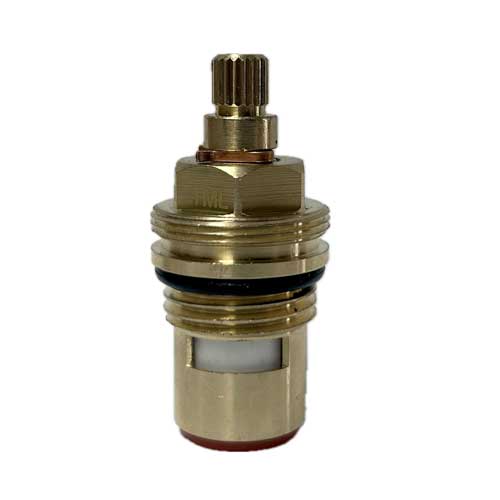

The cold / filter water cartridge is known by spare part code 123475 HP 35mm open K-35B.
Previously known by 123475, 123817, 122063, 120874.

If your tap is leaking around the base of the spout (where the spout joins the tap body) then you need to replace the Spout seals/ O'Rings.

Replacement jet regulator aerator available as SR01TF (Chrome). Original aerator code 121641.

How to remove the handle on the Blanco Trima Filter:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the screw cap cover on the underside of the handle. This will prise off.
Step 2. Remove the handle retaining screw, using appropriate size Allen key (SK01-S).
Step 3. Pull handle away from tap body.
Step 4. Unscrew decorative shroud (Cold / Filter side) from the tap body anticlockwise.
Step 5. Use an adjustable spanner to undo the cartridge locking nut.
Step 6. Remove old cartridge from the tap body.
Step 7. Fit your new cartridge in place and reverse the steps to refit the handle.

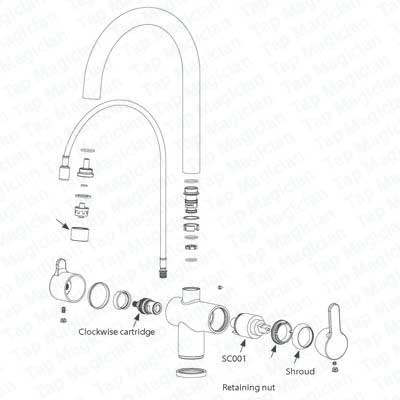

Blanco Trima Filter tap instruction diagram below.
