NABIS TRAD FRENCH STYLE MONO KITCHEN TAP SPARES

Tap Magician compatible spares / parts to repair the Nabis Trad French Style Mono Kitchen Tap B08921.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
For guidance / instructions of how to replace a tap valve step by step please click here

Original spare part codes known by B09130 / WUK49. May have PPI 20 stamped on this.

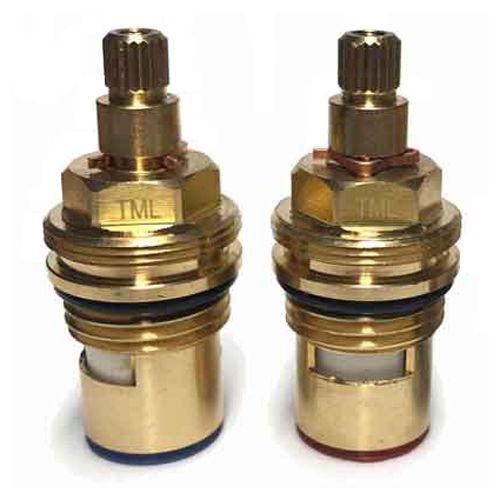

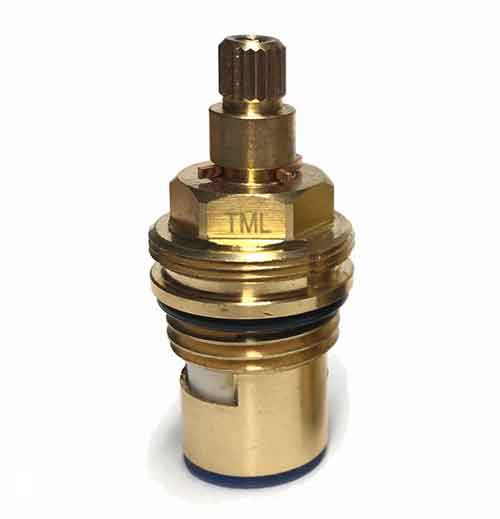

Trad French Style Mono cartridge has 20 teeth on spline. Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If your Nabis Trad French Style Mono tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.

If you require a new aerator you will need our SR80C-S (Chrome) and SR80CB-S (Brushed Chrome).
Known by spare part code B09129 / WUK47.

How to remove my Nabis Trad French Style Mono tap handle lever:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove indice from the top of the handle.
Step 2. Remove the handle retaining screw.
Step 3. The handle will then pull off.
Step 4. Unscrew decorative shroud anticlockwise.

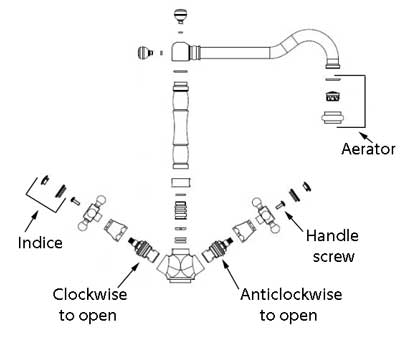

You can find the Nabis Trad French Style Mono diagram below.


Product code: B08921
Manufacturer code: M04054
