ASTRACAST CAMARGUE BRIDGE TAP SPARES

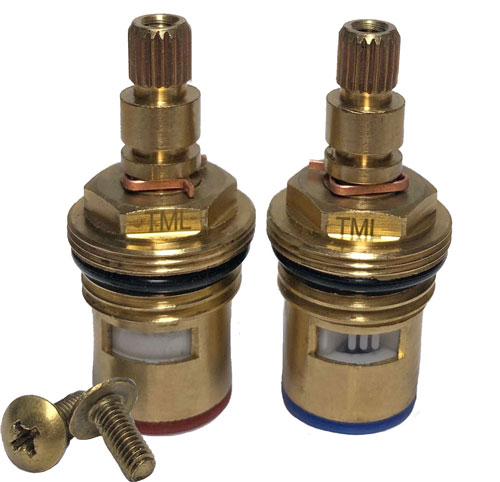

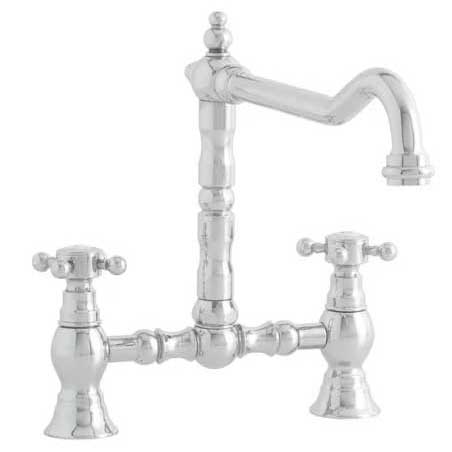

Replacement cartridges suitable for the Astracast Camargue Bridge Twin Dial Single Flow Tap TP0430 / TP0037.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Cartridge has 20 teeth on spline. Hot and cold cartridges available.
You will need our anticlockwise open (blue) for the hot side, and Clockwise open (red) for the Cold side.
If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease.

How to remove handles:
Before replacing the cartridge you will need to turn the water off.
1. Remove end cap and use crosshead screwdriver to remove screw.
2. Pull lever away from tap body.
3. Once handle is removed undo shroud (unscrew anticlockwise).
4. Use 17mm or adjustable spanner to remove cartridge.

Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
