BRISTAN KURVE BASIN TAP SPARES
Replacement BSP ½ ceramic cartridges and spares compatible with the Bristan Kurve sink mixer KU SNK C.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

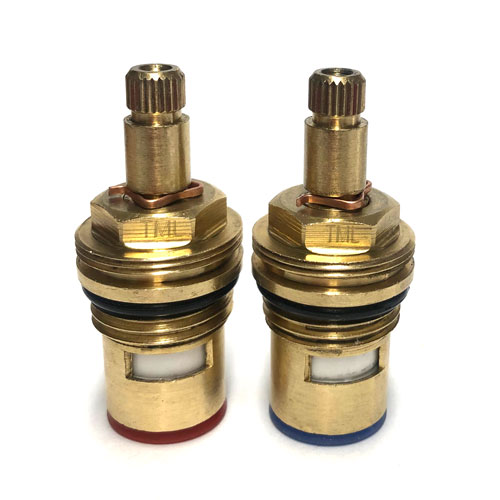

Original spare part code known by 691078973098. Cartridge has 24 teeth on spline.

Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

How to remove the Bristan Acute tap head handle and replace the cartridge/valve:
1. Use a allen key to remove grub screw at the back of the handle.
2. Pull handle off.
3. Use adjustable of 17mm spanner to undo cartridge. It will unscrew anticlockwise.

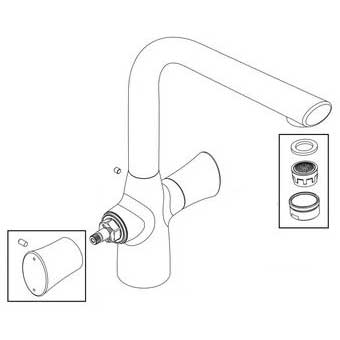

See tap instruction diagram below.
Replacement flow restrictor aerator available as SR24C-S. Known by spare part code 2998825100.

Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
