BRISTAN PRISM PM 3HWMBAS C BASIN ½ TAP SPARES

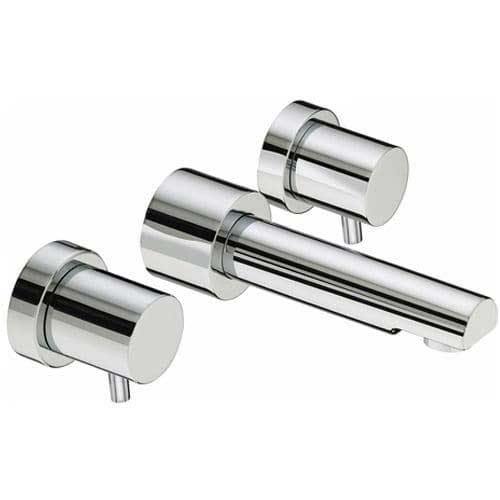

Tap Magician compatible spare parts for the Bristan Prism Wall Mounted Basin Mixer Tap PM 3HWMBAS C.

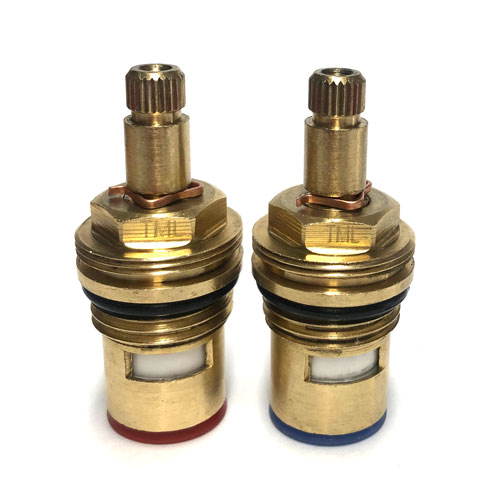

If your Bristan Prism tap are dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original cartridges known by spare part code 00622855.

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,
If you require both then you can select "Pair".

The cartridge features 24 teeth on the spline and utilises a handle insert. Please note that you will need to reuse your existing adaptor on the replacement cartridge.
The adaptor is identified by spare part code APT 00514540.

If you need a new flow straightener this is SR24C-S. Known by spare part code ANT 06215.

Bristan Prism Frequently Asked Questions:
How to remove my Bristan prism tap head/handle?
Use a Allen key to remove grub screw on the underside of the handle. The handle will then pull off.

How do I remove the cartridge in my Bristan Prism tap?
You will need a 17mm or adjustable spanner to remove the cartirdge. The cartirdge will undo anti-clockwise from the tap.

How to identify my Bristan tap? How to repair my leaking Bristan prism tap? Spares available for Bristan prism.
Any further questions contact our experienced technical team.
