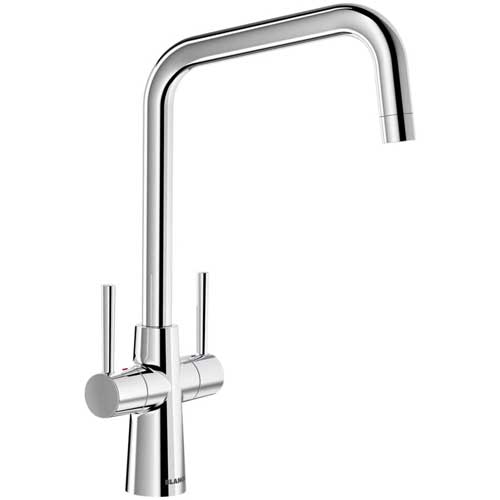

Tap Magician fully compatible spares to fit the Blanco Jax Kitchen Lever Mixer Tap 526682 / 526681 / 527527.
For guidance / instructions of how to replace a tap valve step by step please
click here

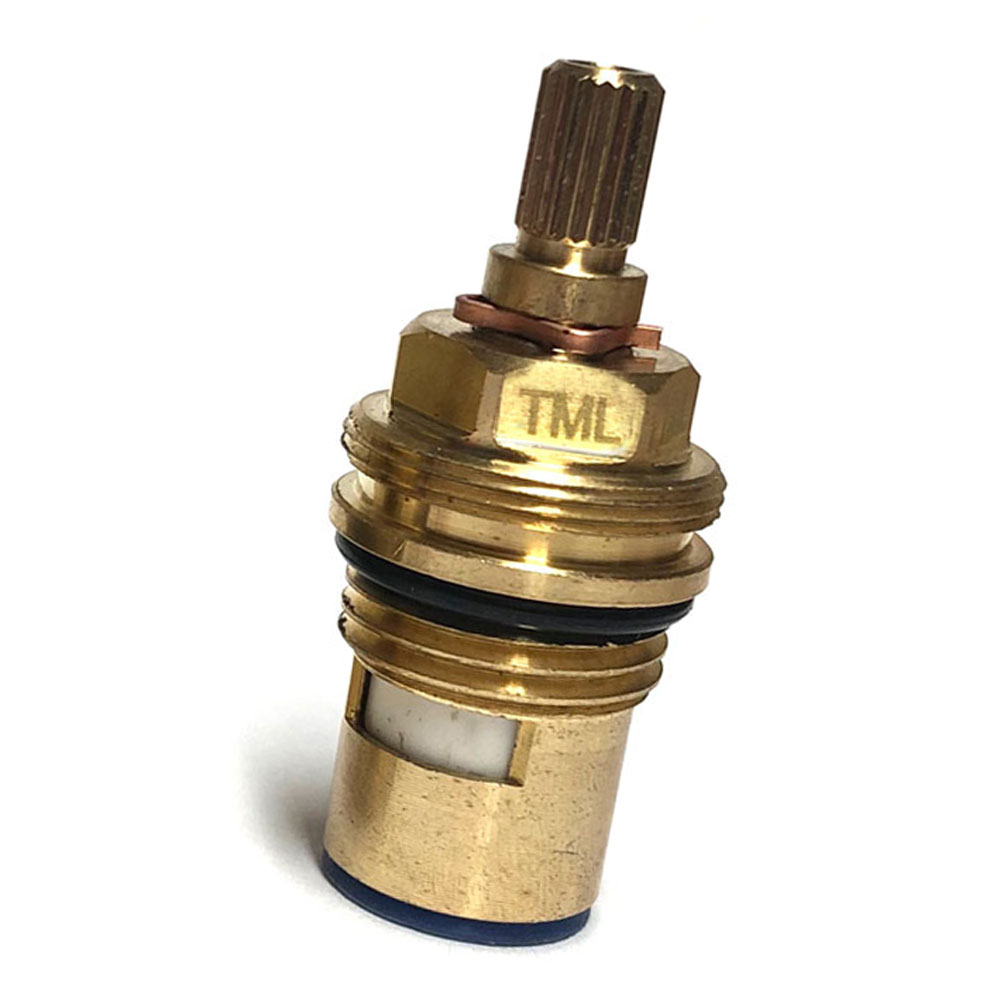

If your Blanco Jax tap is dripping out of the spout then you need to replace the ceramic quarter turn cartridges.
The original cartridge known by spare part code is 124292 / 124293.

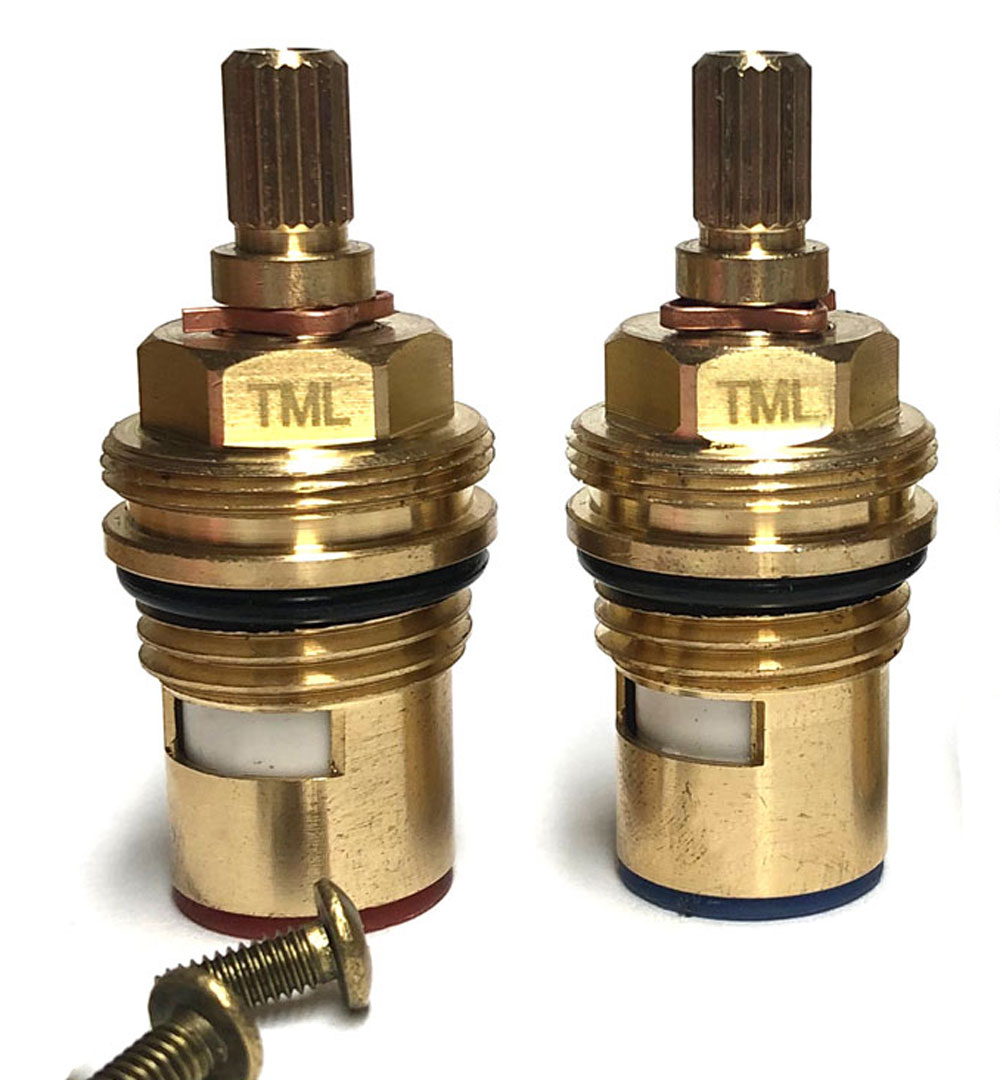

They are available singly (hot handle Opens Clockwise / cold handle opens Anticlockwise) or as a pair.
If your tap is leaking around the base of the spout (where the spout joins the tap body) then you need to replace the Spout seals/ O'Rings.
How to remove the handle on the Blanco Jax and replace the cartridge?
1. Remove chrome indice/screw covering cap from underside of handle.
2. Use 2.5mm allen key to undo grub screw.
3. Pull Handle off.
4. Use 17mm or adjustable spanner to undo cartridge anticlockwise.
5. Remove brass Spline adaptor (Handle adaptor) from top of cartridge.
You will need a 2mm allen key to undo the grub screw and a crosshead screwdriver to undo the screw in the top.
You will need to use this on the new cartridge from us.
6. Refit Cartridge with spline adaptor in to the tap screwing it in clockwise.
7. Refit handle.
How to remove the spout on the Blanco Jax?
1. Use Crosshead screwdriver to undo spout retaining screw.
2. Pull spout up and away from tap body.
3. Replace o rings, original are clear, ours are black.
4. Apply silicone grease to the new o rings.
5. Push spout back firmly and tighten screw.

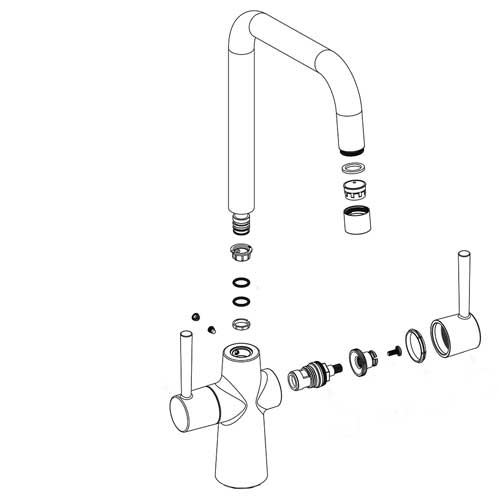

You can find the Jax tap instruction diagram below.
