IDENTIFY YOUR TAP VALVE OR SHOWER CARTRIDGE

Let us help you find the right part! Tap Magician have experienced (and friendly!) advisors available by phone, email or live chat to identify your cartridge. We try to respond quickly but if you need an urgent response please telephone us once you have sent us the photos. If you need to speak to us please call on 01444 871313. Whatsapp is for messaging only.

You can send us a photo of your tap in the first instance and we will try our best to identify the tap model for you. Unfortunately there are lots of generic unbranded taps that have no identification marks on them so this is not always possible. If we cannot identify the model of your tap or shower you will need to remove the part and take some measurements. Please refer to our guidance on measuring your cartridge below and send us as much information as you can.

You can send us your photo or email us at sales@tapmagician.co.uk

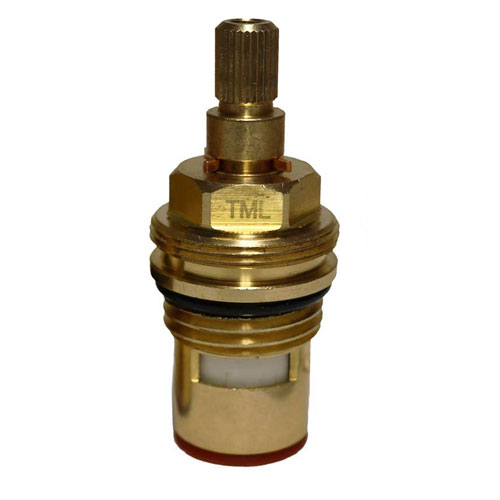

Measuring Quarter Turn Flow Cartridges

How to identify your quarter turn valve/cartridge.
    1. Count the teeth on the spline ( we find taking a photograph looking doen the spline and counting from the photograph is the easiest way)or use our spline gauge.
    2. Measure the cartridge as per our diagram
    3. Send us clear photos of your cartridge including any coding on the cartridge and also photos of your tap.
    4. Let us know any other detaails such as make and model of the tap.

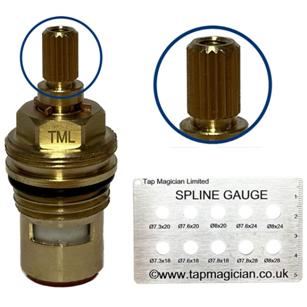

Counting the Splines

Measuring the cartridge

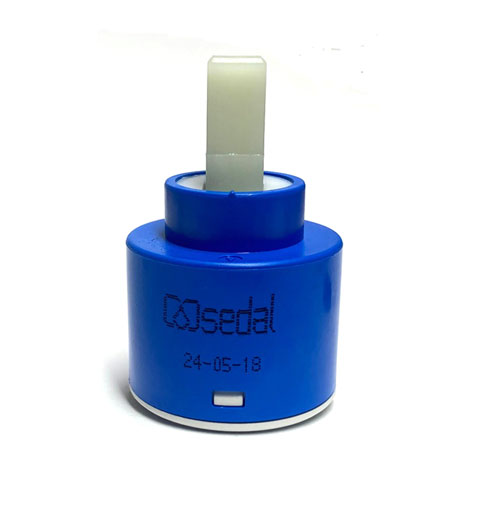

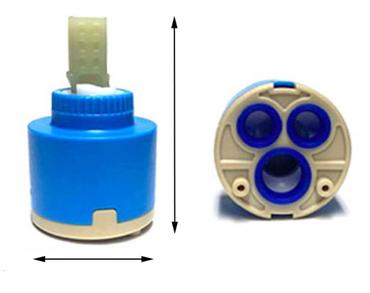

Single Lever cartridge

To identify your plastic single lever Monobloc tap cartridge.
1. Measure the Total Height and width of the cartridge
2. Photograph both sides and bottom of the cartridge

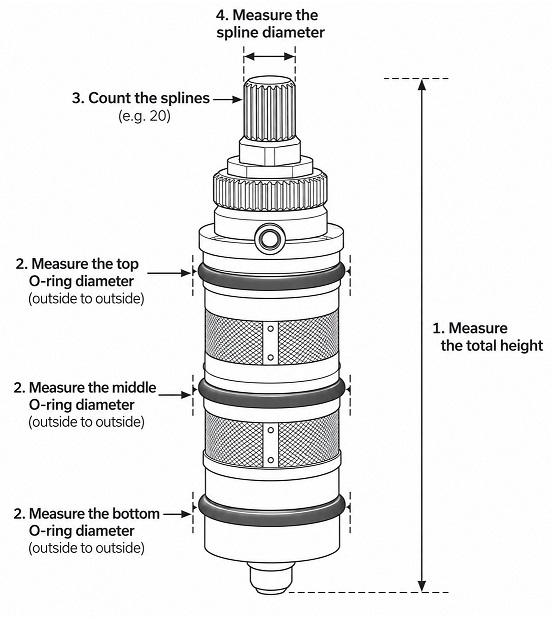

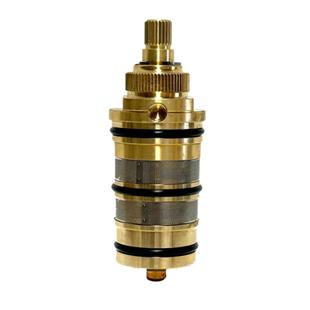

Thermostatic Shower cartridge

To identify your Thermostatic Shower Cartridge.
    1. Measure the Total Height and width of the cartridge
    2. Count the Splines
    3. Photograph the cartridge

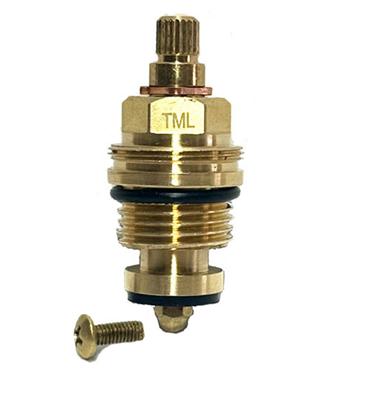

Compression Valve

To identify your standard compression valve.
    1. Count the splines.
    2. Measure the Valve against our diagram - Measure the C in the closed position as we need the seating depth inside the tap.
    3. Photograph the Valve.
