CARRON PHOENIX SAVOY TAP SPARES

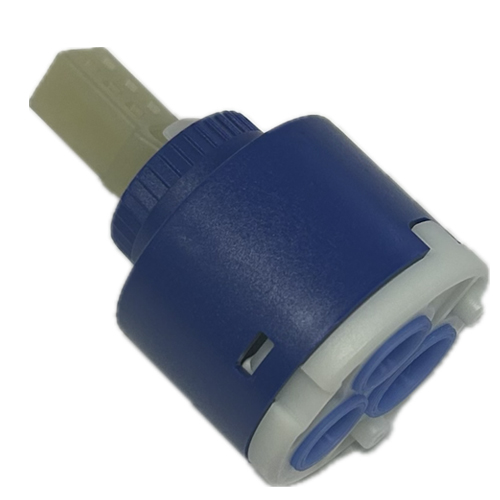

Tap Magician Compatible Replacement Ceramic tap cartridge to fit the Carron Phoenix Savoy single lever mixer tap.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part known by code 1202R / SP1202 / 133.0069.360.

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 3668R.

If you require a new handle retaining screw this is our SS04-S.
We have a suitable set of Allen keys (SK01-S) available to remove the handle and spout.

To replace the antisplasher / aerator you will need our part SR22X (available in Chrome).
Original codes known by 133.0068.791 / 1485R. Your original part may have Neoperl stamped around the edge.

How to remove the handle and replace the cartridge:
Before replacing the cartridge you will need to turn the water off.
To replace the cartridge, you will need the handle retaining screw by using a 2.5mm allen key and remove the handle.
With the handle removed you can then unscrew the cartridge cover by unscrewing it anticlockwise.
Use an adjustable spanner to remove the cartridge locking ring.
Once this has been removed you can then remove the cartridge and replace.

How To remove the spout and replace o'rings:
You will first need to unscrew the spout retaining screw by using a 2.5mm allen key.
You can then lift the spout up and replace the o rings at the base with the new parts (SK18-S).

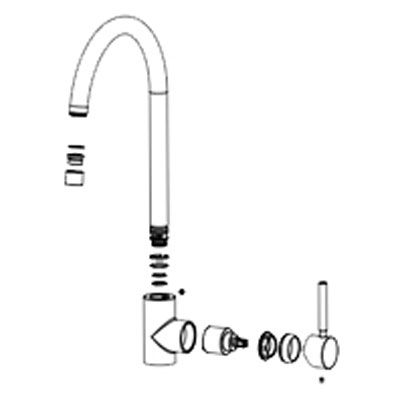

You can find the Savoy tap diagram / instructions below.
Frequently asked questions about your Carron Phoenix Savoy tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Savoy tap? Spares available for Carron Phoenix Savoy.
Any further questions contact our experienced technical team.
