FRANKE TRIFLOW KUBUS KITCHEN TAP SPARES
Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
Tap Magician compatible spare parts to repair the Franke Triflow Kubus Filter Kitchen mixer tap.
***Please note these cartridges will NOT fit the Franke FILTERFLOW Kubus. The Franke Triflow Kubus was discontinued Spring 2011.
The cartridge to fit the Filterflow version can be found by
clicking here.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. This Franke Triflow Kubus Tap takes 3 valves. The Cold and Filter require our Anticlockwise opening valves. Hot requires Clockwise open. (Hot FR9762 and Cold/Filter FR9763)

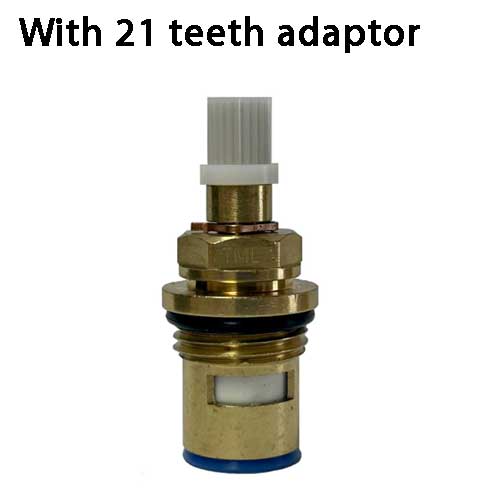

Cartridge comes with white plastic spline adaptor. Your old adaptor may come out on the cartridge or remain in the handle.
We can supply the spline adaptor but not the circlip. However you can easily reuse your old parts.
This Tap takes 3 valves (1 Hot FR9762 and 1 Cold FR9763 and 1 Filtered Cold FR9764).
For guidance / instructions of how to replace a tap valve step by step please
click here
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by FR9400.
We have a replacement aerator / end diffuser available in chrome or brushed SR01TF / SR01TFCB (original code TF97000PF / TF97000CP).
How To remove the handle and replace the cartridge:
Before replacing the cartridge you will need to turn the water off.
1. Pull the lever off. A firm pull will be required outwards and upwards.
2. Use 17mm Spanner to undo cartridge (anticlockwise)
3. Remove white clip from around the body of the old cartridge. We do not supply this part and must be re-used.
4. If spline adaptor has remained in the handle this will need to be removed from inside the handle. The New cartridge comes complete with spline adpator.
5. Fit new cartridge (Screw in to tap body clockwise) and fully tighten with spanner.
You can find the Triflow tap diagram below /instructions.
