TRIFLOW CONCEPTS WHITEHALL KITCHEN TAP SPARES

Tap Magician Replacement Cartridges to fit the Triflow Concepts Whitehall Filtered Tap TF-KT32.
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
The Cold and Filter require our Anticlockwise opening valves. Hot requires Clockwise open. (Hot FR9762 and Cold/Filter FR9763)

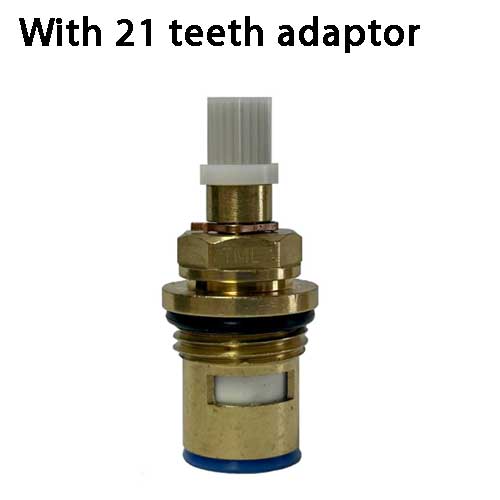

Cartridge comes with white plastic spline adaptor. Your old adaptor may come out on the cartridge or remain in the handle.
We can supply the spline adaptor but not the circlip. However you can easily reuse your old parts.

For guidance / instructions of how to replace a tap valve step by step please click here

How to remove the Triflow Concepts White handle and replace the cartridge:
Before replacing the cartridge you will need to turn the water off.
1. Pull the lever off. A firm pull will be required outwards and upwards.
2. Use 17mm Spanner to undo cartridge (anticlockwise)
3. Remove white clip from around the body of the old cartridge. We do not supply this part and must be re-used.
4. If spline adaptor has remained in the handle this will need to be removed from inside the handle.
5. Fit new cartridge (Screw in to tap body clockwise) and fully tighten with spanner.
You can find the Triflow tap diagram below /instructions.


Compatible with models TF-KT32UR-PF,TF-KT32UR-NI,TF-KT32RUR-CP,TF-KT32U-PF,TF-KT32U-NI,TF-KT32U-CP,TF-KT32C-PF,TF-KT32C-IN,TF-KT32C-CP.
