FRANKE TRIFLOW FR9762, FR9763, FR9764

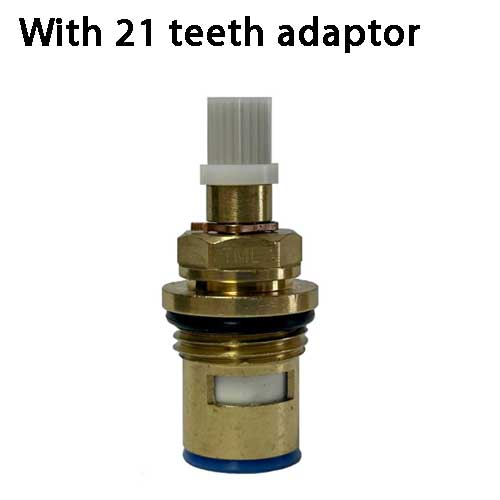

Tap Magician compatible replacement cartridges for the Franke Triflow FR9762, FR9763, FR9764 coded cartridges.
Please note the cartridge is suppled with the spline adaptor but not the circlip. However you can easily reuse your old parts.
Your old adaptor may come out on the cartridge or remain in the handle.

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Franke Triflow Hot FR9762, Cold FR9763 and Filtered Cold FR9764.
You will need anticlockwise to open for the Cold and Filter and clockwise to open for Hot.

How to remove the handle and replace the cartridge:
1. Pull the lever off. A firm pull will be required outwards and upwards.
2. Use 17mm Spanner to undo cartridge (anticlockwise)
3. Remove white clip from around the body of the old cartridge. We do not supply this part and must be re-used.
4. If spline adaptor has remained in the handle this will need to be removed from inside the handle.
The New cartridge comes complete with spline adpator.
5. Fit new cartridge (Screw in to tap body clockwise) and fully tighten with spanner.

You can find the Triflow tap diagram instructions below.
