ABODE ANTILA TAP SPARES
Tap Magician compatible spares / parts to repair the Abode Antila Kitchen mixer tap with crosshead handles AT1068.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3984R / SP3984 / ASSCDV0001.

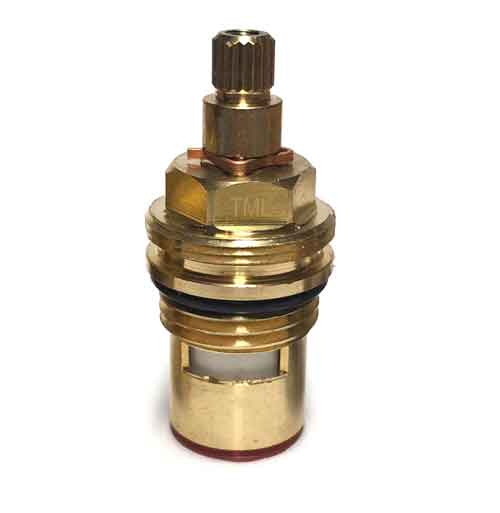

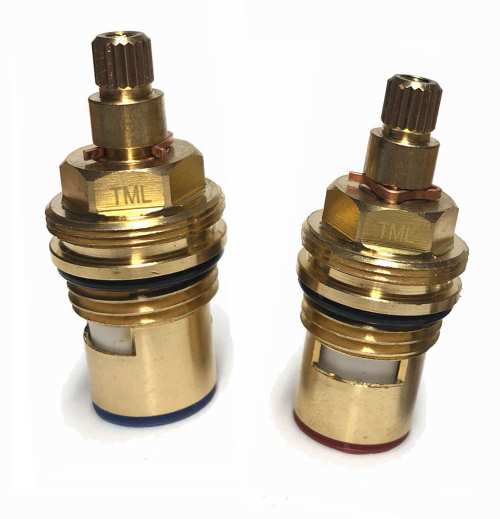

Antila Cartridge has 20 teeth on spline. Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.

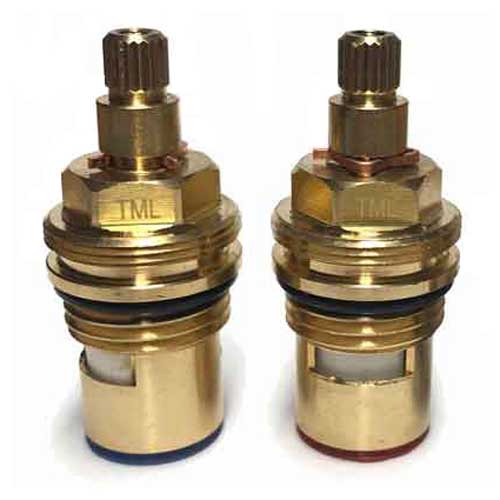

If you require both then you can select "Pair".

If your Antila tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 1425R SP1425.

If you require a new antisplasher /aerator / perlator this is our part SR63C/CB (available in Chrome or brushed).
Original codes known by 133.0068.762 SP1263 /1263R.
Your original part may have Neoperl stamped around the edge.

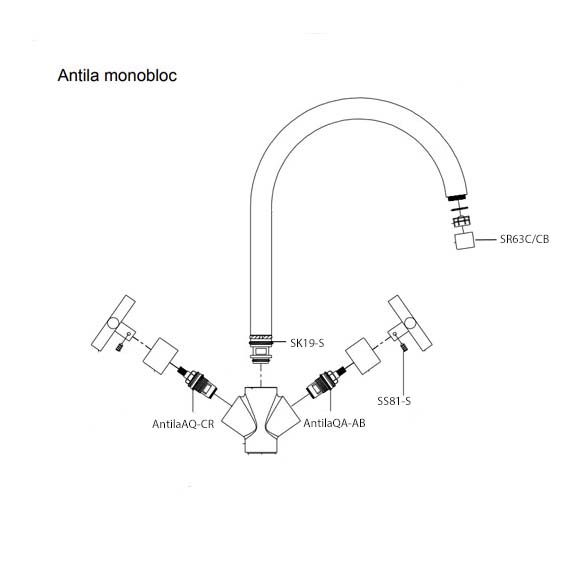

You can find the Antila tap diagram / instructions below.

Frequently asked questions about your Abode Antila tap.

How to remove my Abode Antila tap head / handle?
Use a 2mm Allen key to remove grub screw on the underside of the handle.
The handle will then pull off and the shroud will unscrew.

How to remove the Spout?
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.

How to replace your cartridge?
First turn water off. Using a 17mm spanner to undo cartridge anticlockwise.
Some water will seep out, keep a cloth handy.
Fit new cartridge clockwise, tighten with spanner.

How to identify my abode tap? How to repair and fix my leaking abode tap? Abode compatible spares available.

Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.

Any further questions contact our experienced technical team.
