ABODE ZOOM BELLAGIO ZP1004 ZP1003 SPARES
Tap Magician compatible spares / parts to repair the Abode Bellagio Kitchen mixer monobloc tap with lever handles.

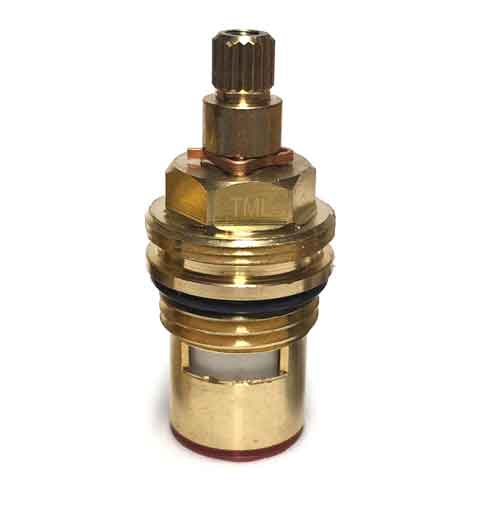

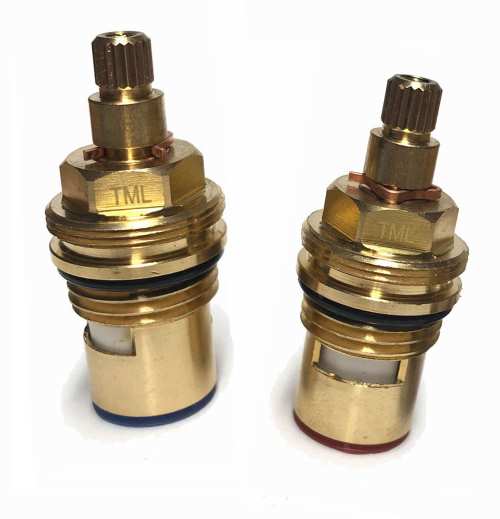

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3984R / SP3984 / ASSCDV0001, hot and cold valve replacements available

If you require a new antisplasher /aerator this is our part SR63C/CB (Chrome or Brushed steel)

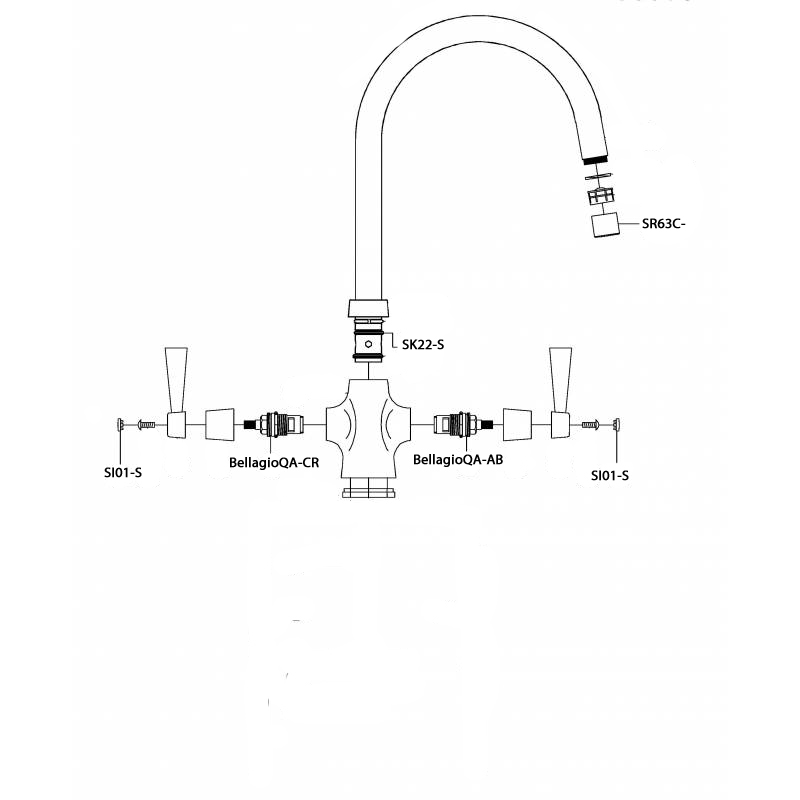

You can find the Bellagio tap diagram/instructions below.
Frequently asked questions about your Abode Bellagio tap

How to remove my Abode Bellagio tap head/handle?
How To remove the handle: remove end cap. Undo screw with crosshead screwdriver. The handle will then pull off. Unscrew shroud / tap cover anticlockwise

How to remove the Spout?
Undo collar at the base of the spout. Pull spout up and out of tap body. See video below

How to replace your cartridge?
Step 1. Make sure water is turned off. Step 2. Use 17mm spanner to undo cartridge anticlockwise. Some water will seep out, keep a cloth handy. Step 4. Fit new cartridge clockwise, tighten with spanner.



How to identify my abode tap? How to repair and fix my leaking abode tap? Spares available. Any further questions contact our experienced technical team
