BRISTAN ACORN TAP SPARES

Tap Magician spare parts to repair the Bristan Acorn Easyfit Sink Mixer Kitchen Tap.
Compatible with models ACR EFSNK BLK, ACR EFSNK C, ACR EFSNK SS.

For guidance / instructions of how to replace a tap valve step by step please click here

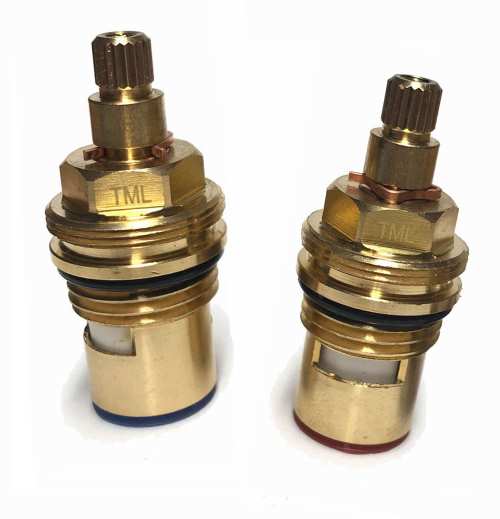

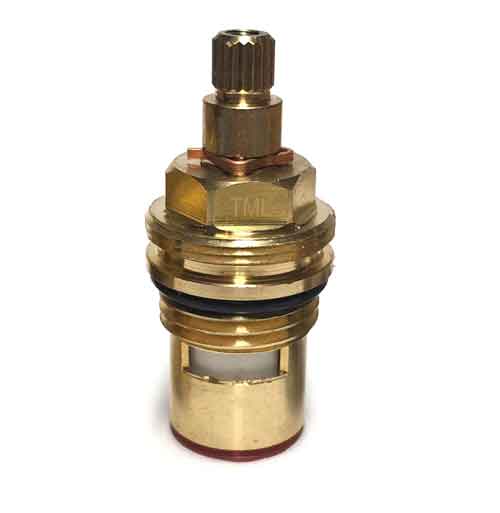

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original cartridge codes 19MC090L29.04 / 19MC090R53.04.

Cartridge has 20 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,
If you require both then you can select "Pair"

How to remove my Bristan Acorn tap handle lever and replace the cartridge/valve?
Turn water off fuly before starting steps
1. Remove screw cover on the underside of the handle.
2. Use allen key to undo the handle retaining screw.
3. Pull handle off.

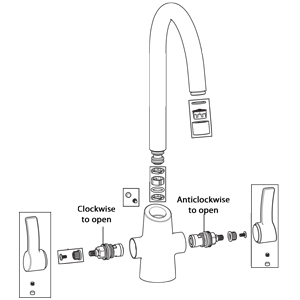

4. Use adjustable or 17mm spanner to undo cartridge. It will unscrew anticlockwise. See tap diagram below



How to identify my Bristan tap? How to repair my leaking Bristan Acorn tap?
Spares available for Bristan Acorntap.

Any further questions contact our experienced technical team.
