Compatible Spare Parts for the Bristan Manhattan

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time

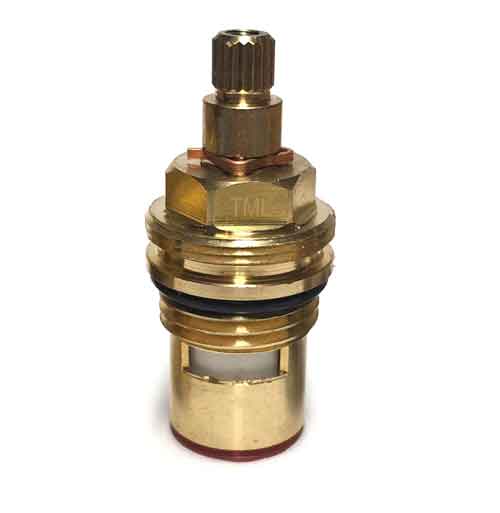

ManhattanQA-ABAnticlockwise (to open) blue1/2" Cartridge 20 x 51mm £7.00 Tomorrow
ManhattanQA-CRClockwise (to open) red1/2" Cartridge 20 x 51mm £7.00 Tomorrow
ManhattanQA-PPair (1 x red, 1 x blue)1/2" Cartridge 20 x 51mm £14.00 Tomorrow
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SRBLK-SSingleMale Thread 24mm Black£4.86 Tomorrow
SI01-SSingleTap indices set£5.50 Tomorrow
SK22-SSingleSpout O ring repair kit£5.00 Tomorrow
SL05-SSingleLubricant£3.50 Tomorrow
ST17-SSingle17mm spanner£6.50 Tomorrow
STBOX-SSingleCartridge Removal Box Spanner 14 / 17mm£9.50 Tomorrow
ST0TTK-SSingleMonobloc Tap Tightening Spanner Set£10.50 Tomorrow

Tap Magician replacement spares for the Bristan Manhattan easyfit Tap.
Compatible with the newer versions of Manhattan (easifit)only identifiable by the locking nut at the bottom of the spout. If in doubt please contact us.

Bristan spare part code for the Valve K_494H / 210V10288NT_FEU09. Cartridge is 20 spline and measures 51mm tall.
Please note the older version takes a shorter cartridge.

Watch our video below for guidance / how to remove your handles and change your quarter turn ceramic cartridge.

If your Bristan Manhattan mixer tap is leaking or dripping out of the spout then it is time to replace the ceramic disc quarter turn valves.
They are easy to replace. You can purchase hot and cold singly or the pair.

How to remove the handle:
Remove the red and blue tap indices. These will pop out. Use Cross head screwdriver to remove retaining screw.
Pull handle off. Use adjustable or 17mm spanner to undo cartridge (anticlockwise). We now sell a box spanner for you to easily remove and fit your cartridges.

If your tap is leaking at the neck (where the swivel spout joins the tap body) then you need to replace the o'rings inside the spout.

How to remove the spout and replace o'rings:
Unscrew the locking nut at the base of the spout. Once undone pull the spout up and out of the tap body.
Replace the O rings (original code 1239R).
Please note the white nylon washer does not fit the Easyfit version. The 2 o'rings are compatible.

You can find the Manhattan tap diagram/instructions below.

Cartridges can be known by glands, inserts, ceramic disk valve. WQ0820
