CARRON PHOENIX LUCIAN CROSSHEAD TAP SPARES
Tap Magician compatible spares / parts to repair the Carron Phoenix Lucian Crosshead Kitchen tap with crosshead handles.

For guidance / instructions of how to replace a tap valve step by step please click here

If your Lucian tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3984R, hot and cold valve replacements available.

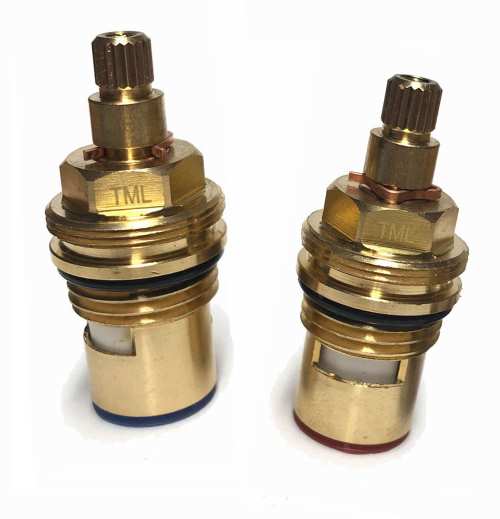

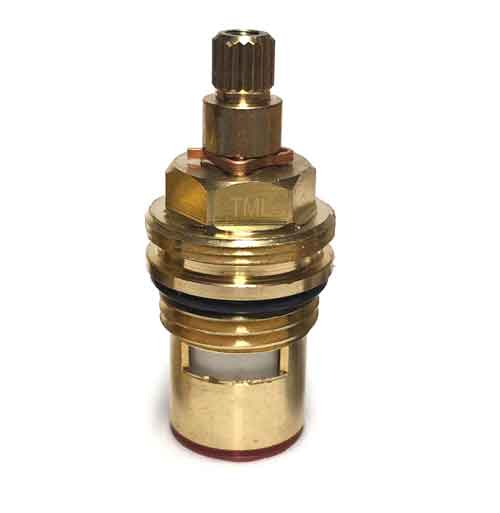

Cartridge has 20 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 3668R.
Please note our SK18-S is not provided with a spout retaining screw. You will need to reuse your original.

If you require a new antisplasher /aerator this is our part SR63C/CB (available in Chrome).
Original codes known by 133.0068.762 SP1263 /1263R.
Your original part may have Neoperl stamped around the edge.

How To remove the handle:
Remove the handle retaining screw by using a 2mm allen key (SK01-S).
You can then remove the handle which will then allow you to unscrew the valve cover by unscrewing it anticlockwise.
You are now ready to unscrew the valve by using an adjustable spanner and fitting the replacement parts.

How To remove the spout and replace o'rings:
You will first need to unscrew the spout retaining screw by using a 2.5mm allen key.
You can then lift the spout up and replace the o rings at the base with the new parts (SK18-S).

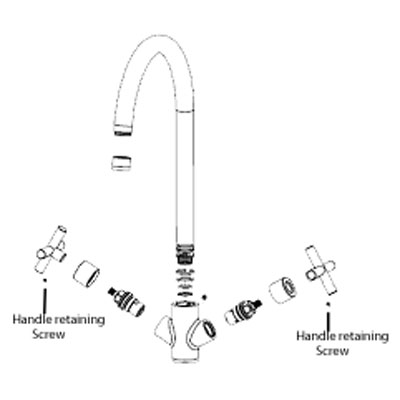

You can find the Lucian Crosshead tap diagram/instructions below.
Frequently asked questions about your Carron Phoenix Lucian Crosshead tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Lucian Crosshead tap? Spares available for Carron Phoenix Lucian Crosshead.
Any further questions contact our experienced technical team.
