BRISTAN BEELINE KITCHEN TAP SPARES
Tap Magician compatible spare parts to repair the Bristan Beeline pull out kitchen tap BE SNK C.
Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.

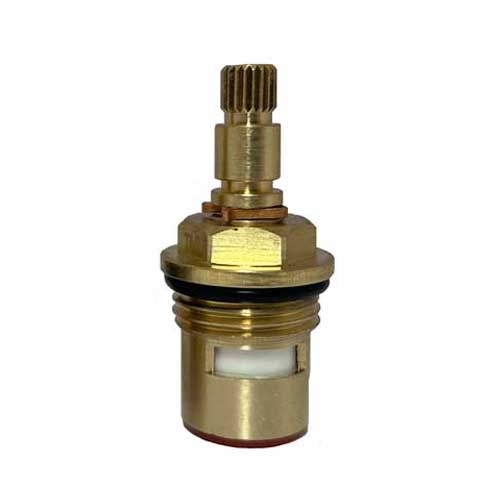

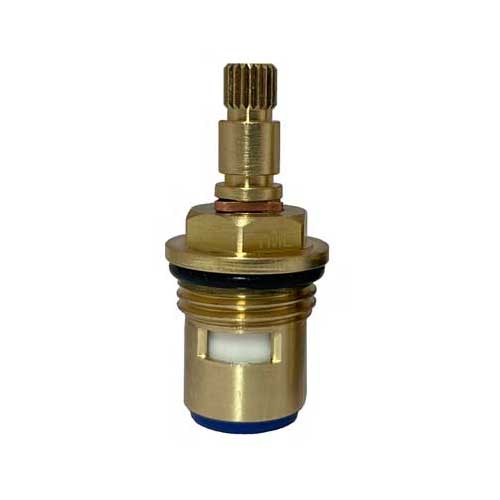

If your Beeline tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Known by codes VS02-C20 3683R. Coding on original Valve BS5412 XZ 20.
Cartridge has 20 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,

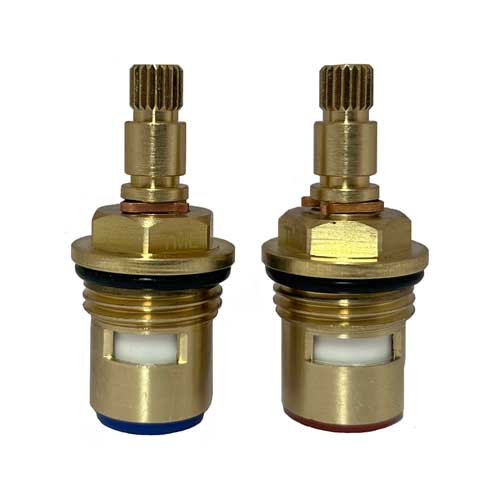

If you require both then you can select "Pair".
If your Bristan Beeline tap is dripping or leaking around the base of the spout (the neck) you need to replace the spout seals.
Compatible with original codes 1315R / 3915R.
Replacement flow straighter aerator available in chrome (SR22X-S).
How to remove my Bristan Beeline tap head / handle and replace the valve/cartridge?
1. Remove the red / blue indices on the ends of the handle (IND 2151R).
2. Use crosshead screwdriver to undo handle retraining screw.
3. Pull Tap Head off
4. Use adjustable or 17mm spanner to undo cartridge anticlockwise. Some water will seep out
How to remove spout and replace spout seals?
Use allen key to remove spout retaining screw and pull spout away from tap body.
Original spout retaining screw code SCW 2487R (SS06-S).

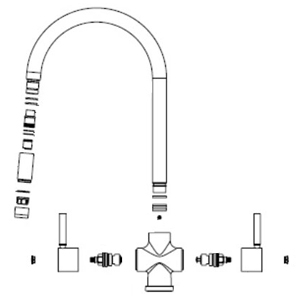

See tap diagram below.
How to identify my Bristan tap? How to repair my leaking Bristan Beeline tap? Spares available for Bristan Beeline tap.
Any further questions contact our experienced technical team.
