Compatible Spare Parts for the Carron Phoenix Bali

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
BaliQ4-CRClockwise (to open) red1/2" x 20 x 52mm NTC£11.99 Today
BaliQ4-ABAnticlockwise (to open) blue1/2" x 20 x 52mm NTC£11.99 Today
BaliQ4-PPair (1 x red, 1 x blue)1/2" x 20 x 52mm NTC£23.98 Today
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SK20-SSingleO Ring Tap Repair Kit£6.99 Today
SS04-SSingleM5 handle grub screw£3.00 Today
SL05-SSinglePremium Disc/O'Ring Lubricant£2.99 Today
SK01-SSingleSet of Allan Keys£1.99 Today
ST14-SSingle14mm spanner£6.50 Today


CARRON PHOENIX BALI TAP SPARES
Tap Magician compatible spare parts to fit the later Carron Phoenix Bali kitchen tap.


***Please note this model has changed the cartridge design has changed during production.
There is no way to identify from the tap itself which cartridge you need, you will need to remove the handle and check the exposed cartridge.
If you are unsure please get in touch with our customer support team.

For guidance / instructions of how to replace a tap valve step by step please click here

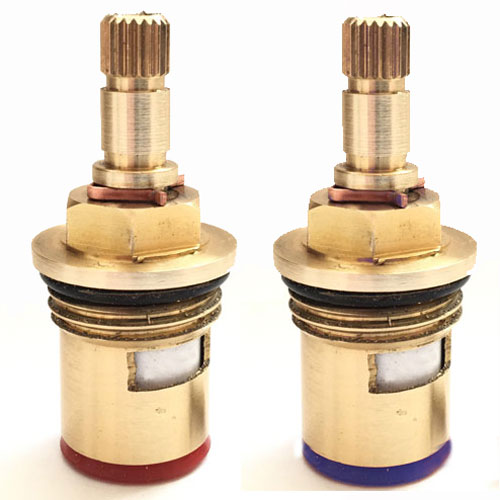

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3819R, hot and cold valve replacements available.

The cartridge has 20 splines. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 2268R.

How To remove the handle:
Remove the handle retaining screw by using a 2.5mm allen key. You will then be able to remove the handle.
Once removed use a crosshead screwdriver to remove the screw holding the brass handle insert onto the cartridge.
With this is removed, you can undo the valve cover retaining screw with a 2.5mm allen key and then unscrew the valve cover.
You will then be able to remove the valve to replace.

How To remove the spout and replace o'rings:
You will first need to unscrew the spout retaining screw by using a 2.5mm allen key.
You can then lift the spout up and replace the o rings at the base with the new parts (SK20-S).

You can find the Bali tap diagram/instructions below.
Frequently asked questions about your Carron Phoenix Bali tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Bali tap? Spares available for Carron Phoenix Bali.
Any further questions contact our experienced technical team.
