Compatible Spare Parts for the Franke Zurich

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
ZurichQ4-CRClockwise (to open) red1/2" Cartridge 20 x 52mm NTC£10.99 Today
ZurichQ4-ABAnticlockwise (to open) blue1/2" Cartridge 20 x 52mm NTC£10.99 Today
ZurichQ4-PPair (1 x red, 1 x blue)1/2" Cartridge 20 x 52mm NTC£21.98 Today

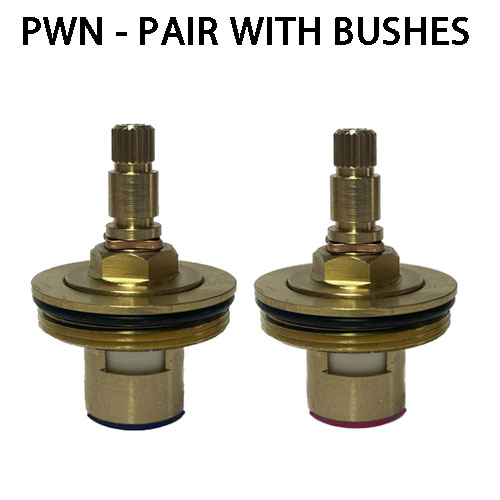

ZurichQ4-PWNPair Cartridges & bushes1/2" Cartridge 20 x 52mm NTC£35.17 Today
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SH0ATH-IITwo singles20 Spline Tap Handle Chrome£32.00 Today
SRBLK-SSingleMale Thread 24mm Black£7.00 Today
SI01-SSingleTap indices set£5.50 Today
SK22-SSingleSpout O ring repair kit£5.00 Today
SB34-SSingle34mm TO 1/2" BSP Conversion bush£7.99 Today
SL05-SSingleLubricant£3.60 Today
STBOX-SSingleCartridge Box Spanner 14mm 17mm£10.50 Today
SPOUT01C-SSingleSwan Neck Spout Chrome£40.00 Today
SF048-SSingleChrome Plinth£9.99 Today


Tap Magician replacement spares for the Franke Zurich Kitchen mixer mono tap.
If your tap is leaking or dripping from the spout then its time to replace the internal ceramic disc cartridges. Original cartridge known by spare part references 3819R The cartridge design in the zurich has changed over the years _ This is the NON threaded collar version. If yours has the threaded collar then please clickhere

When you remove your cartridge the adaptor bush/ring may come out together with the cartridge. If this happens you can try to separate the bush. If you cannot separate the bush from the cartridge then you need to purchase a new bush.(Original bush code is 3408R) if the bush remains inside the tap you just need the cartridges, you do not need to try and remove the bush from the tap.

If your tap is leaking around the neck (this is where the spout connects to the tap block) then you need to replace the spout seals/ O Rings. To remove the spout you need to unscrew the locking nut at the base of the spout. You need to use silicone lubricant on the new Orings when fitted. The Franke Zurich Tap O Ring Kit is known by part 1239R. If O rings does not cure the leak you will need to replace the whole complete spout. We have a compatible tall swan neck spout available in chrome. Please note the shape of the spout we have is different to the original.



If you need a replacement aerator this is our SRBLK-S, which is compatible with 133.0068.760 / 1256R

We now offer a replacement set of lever handles, these are a different style to the original so must be replaced as a set

How to remove the handle and replace the cartridge/valve:
1. Remove indice/ cap from end of handle. This will reveal a screw.
2. Use a crosshead screwdriver to undo this screw.
3. The handle/lever will then pull off.
4. Use adjustable of 17mm spanner to undo cartridge (it will unscrew anticlockwise) some water will seep out so keep a cloth handy.
5. Repeat steps in reverse screwing new cartridge in clockwise.
Replacement tap chrome base ring / plinth available (compatible with 133.0068.833)


Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings
