Tap Magician compatible spares / parts to repair the Abode Linear Monobloc Kitchen Lever Taps AT1184 AT1185 AT1186 AT1214 AT1222 AT1223 JL1012 JL1013.
For guidance / instructions of how to replace a tap valve step by step please
click here

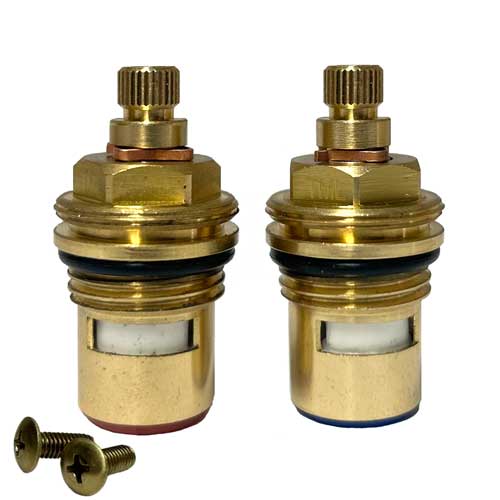

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3540R / ASCDV0020, hot and cold valve replacements available.

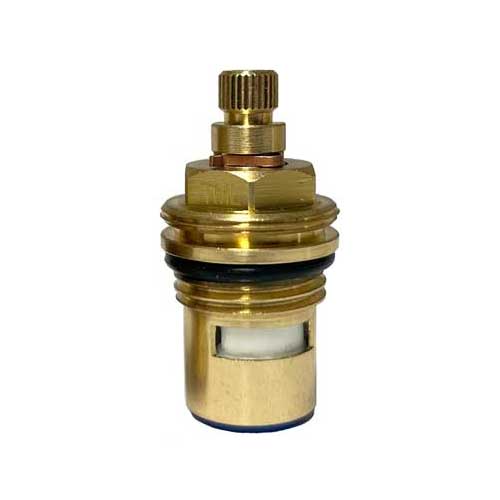

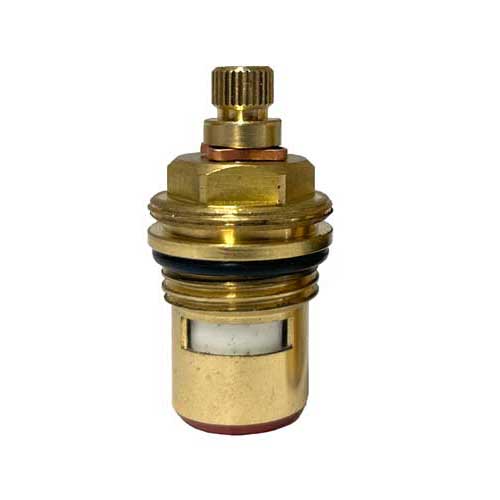

Our cartridge is supplied with the plastic handle adaptor (Our SA03 / original part code 3537R) it is always recommended to replace this part as it is plastic and the splines wear. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by 3473R.
Replacement aerator available
If you require new lever handles we have compatible chrome handles. These differ to the originals so must be replaced as a set. Our Compatible handles do not require the plastic handle adaptor.

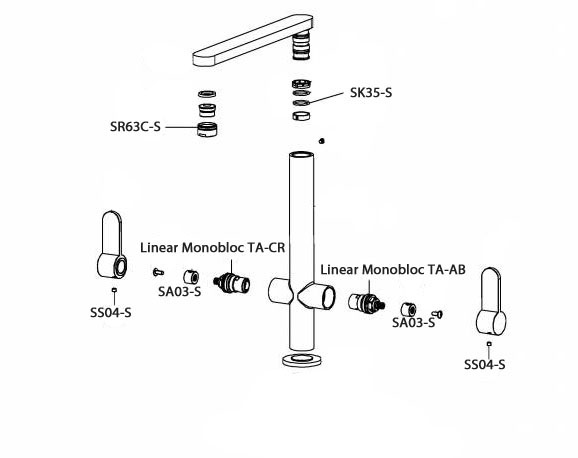

You can find the Linear Monobloc tap diagram/instructions below.
Frequently asked questions about your Abode Linear tap
How to remove my Abode Linear Monobloc tap head/handle?
Use a 2.5mm Allen key to remove grub screw on the underside of the handle. Pull the handle horizontally away from the tap.
How to remove the Spout?
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.
How to identify my abode tap? How to repair my leaking abode Linear tap? Spares available for Abode Linear. Linear tap gland. Tap Insert. Any further questions contact our experienced technical team.
Watch our help video below for general guidance on removing handles and replacing your Quarter turn ceramic valves.
