Tap Magician compatible spares / parts to repair the Abode Linear Style Monobloc AT1218 AT1219 taps
Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings.

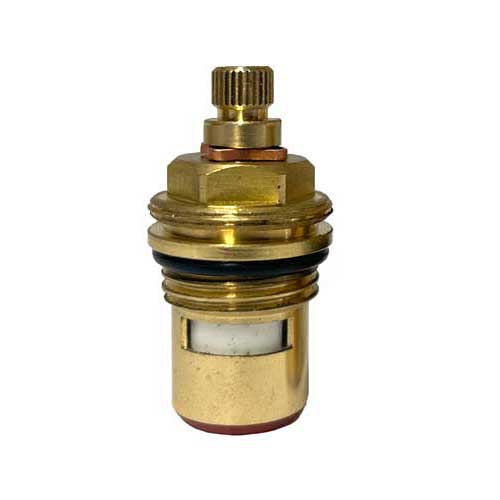

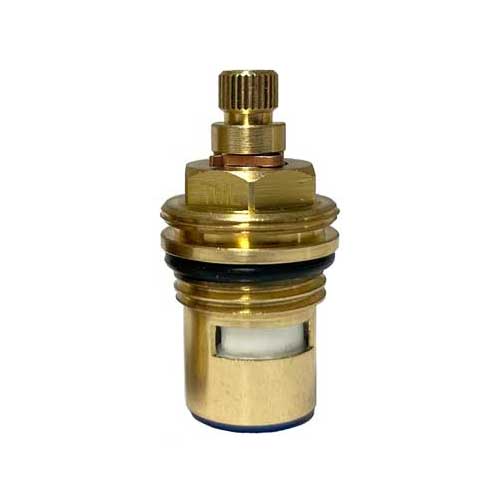

If your Linear Style tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3540R / ASCDV0020, hot and cold valve replacements available

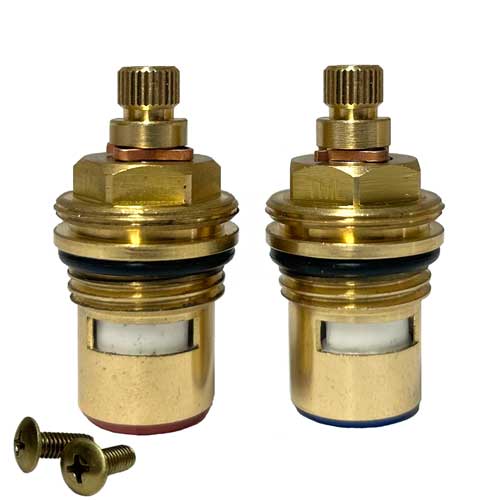

We supply the quarter turn ceramic cartridge along with new handle adaptor. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by 1239R
If you need a new spout we have this available in chrome (SPOUT01C-S) This is compatible with 1306R. The Spout comes complete with o rings and aerator.
How To remove the handle: Use a 2.5mm Allen key to remove grub screw on the underside of the handle. The handle will then pull off and the shroud will unscrew.
If you require a new antisplasher /aerator this is our part SR63C/CB (available in Chrome) Original codes known by 133.0068.762 SP1263 /1263R your original part may have Neoperl stamped around the edge.

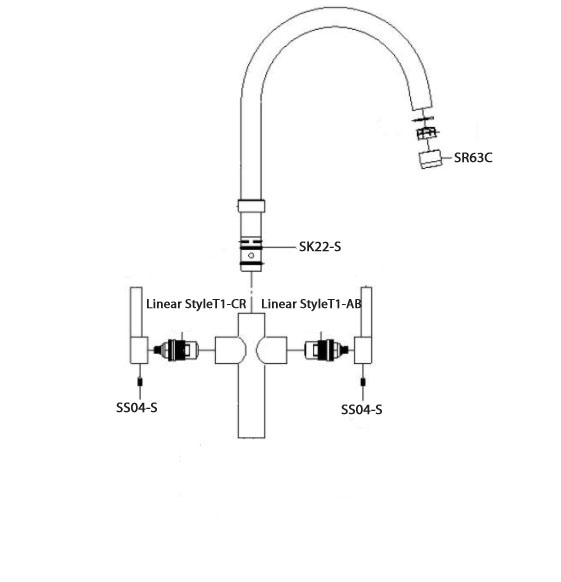

You can find the Linear Style tap diagram/instructions below.
