ABODE NEXA MONOBLOC TAP SPARE PARTS

Tap Magician compatible spares parts to repair the Abode Nexa Monobloc Tap.
Compatible with AT1184 AT1185 AT1186 AT1222 AT1223 AT1214 TMX1 tap models.

Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings.

If your Nexa tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3540R / ASCDV0020, hot and cold valve replacements available.

Replacement handle adaptor available as SA03-S (Single). Known by original spare part code 3537R.

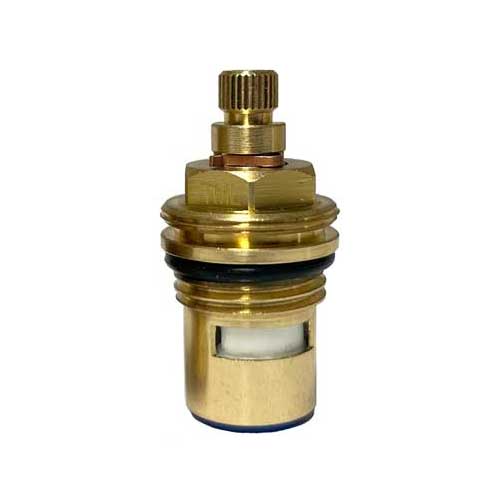

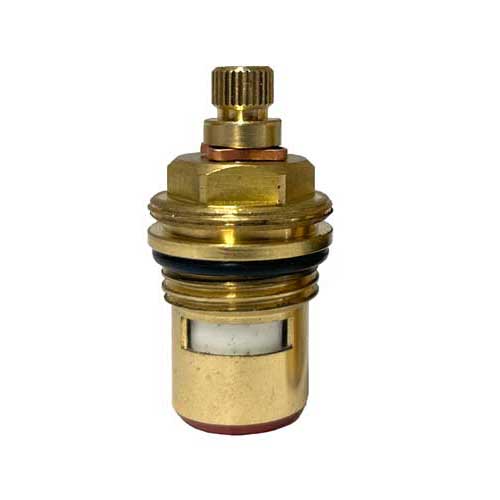

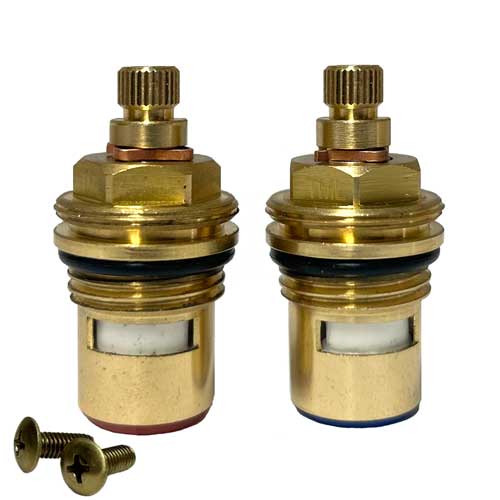

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 3473R.
If you require a new antisplasher / aerator this is our part SR63C/CB (available in Chrome or brushed).
Original codes known by 133.0068.762 SP1263 /1263R your original part may have Neoperl stamped around the edge.

If you need a new complete spout this is our Code SPOUT01C / SPOUT01CB and is compatible with SP1306. The TML Spout comes complete with aerator and o rings.

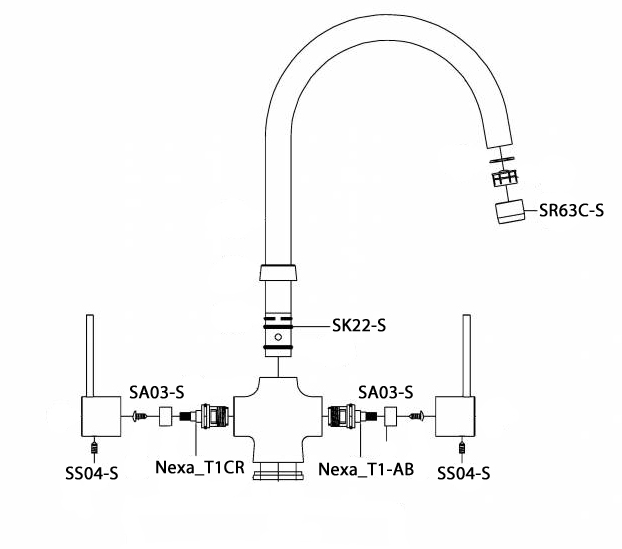

You can find the Nexa Monobloc tap diagram/instructions below.
How to remove the Abode Nexa tap handle:
Step 1. Use a 2.5mm Allen key to remove grub screw on the underside of the handle.
Step 2. Pull the handle horizontally away from the tap.
