Compatible Spare Parts for the Carron Phoenix Tri pure Crystal

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time

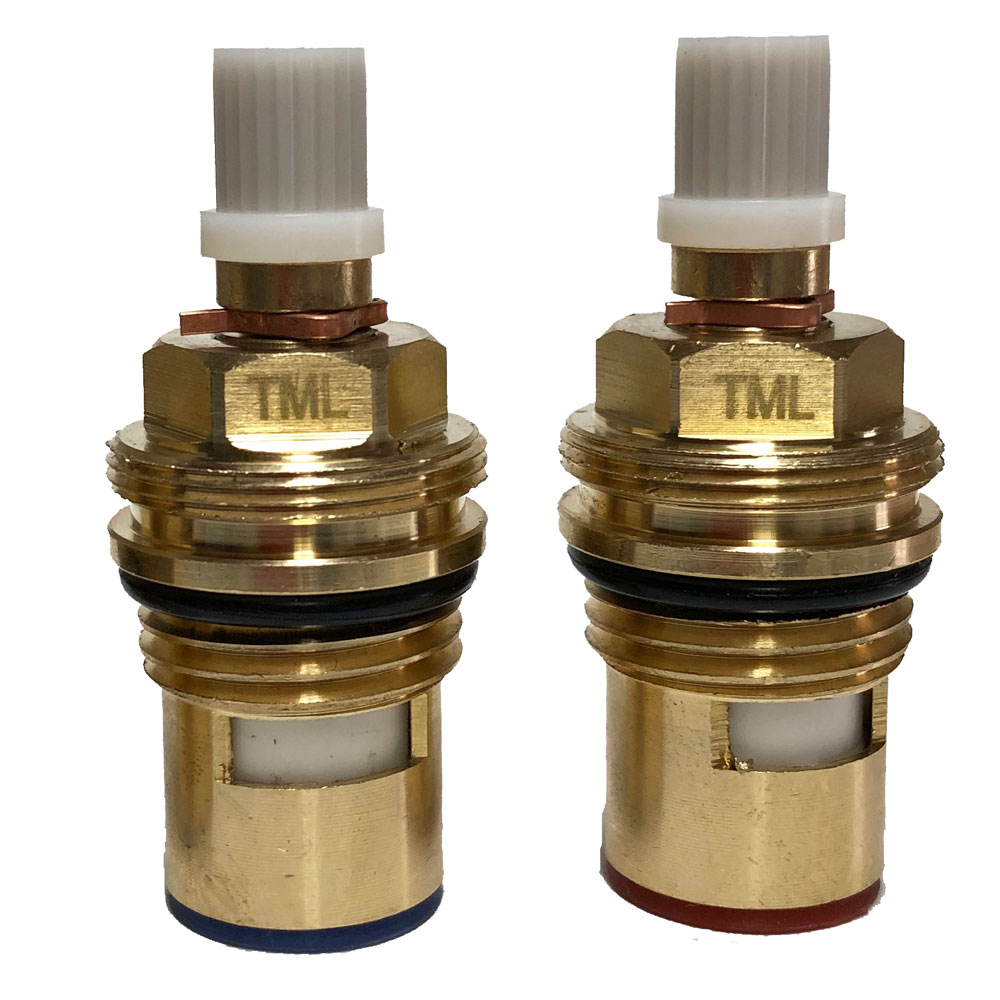

Tri-pure-CrystalSV-ABAnticlockwise (to open) blue1/2" x 21 x 53mm£10.99 Today
Tri-pure-CrystalSV-CRClockwise (to open) red1/2" x 21 x 53mm£10.99 Today
Tri-pure-CrystalSV-PPair (1 x red, 1 x blue)1/2" x 21 x 53mm£21.98 Today
Tri-pure-CrystalSV-3Triflow pack(1 x red, 2 x blue)1/2" x 21 x 53mm£32.97 Today
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SK34-SSingleSpout O Ring Kit £8.99 Today
SL05-SSingleLubricant£3.50 Today
ST17-SSingle17mm spanner£6.50 Today
STBOX-SSingleCartridge Removal Box Spanner 14 / 17mm£9.50 Today
ST0TTK-SSingleMonobloc Tap Tightening Spanner Set£10.50 Today

Replacement spares for the Carron Phoenix Tri Pure Crystal Filter Kitchen Tap.

For guidance / instructions of how to replace a tap valve step by step please click here

If your tap is leaking or dripping from the spout then its time to change the ceramic quarter turn cartridges.
Replacement cartridge known by spare part code FR9245 / FR9246.

Hot, cold and filter water valve replacements available.
You will require our Anticlockwise open cartridge for the cold and filter tap, and clockwise open for the hot side.
To replace all three cartridges please select our Triflow pack.

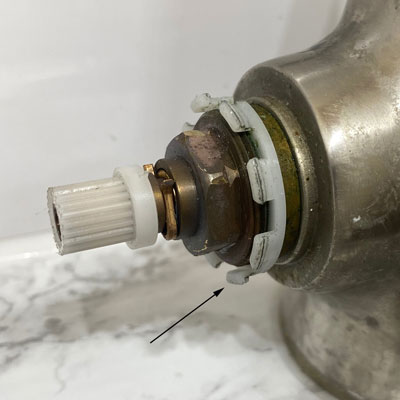

The original cartridge has a white clip around the body of the cartridge.
We do not supply this part so you will need to re use this. See Image below.

If your tap is leaking from the neck (where the spout joins the tap body) then the spout seals need replacing.
You will need our SK34-S spout o'ring kit. The new rubber seals will need greasing with a silicone grease.

Carron Phoenix Tri Pure Crystal Filter Kitchen Tap Frequently asked questions.

How do I remove the Carron Phoenix Tri-pure crystal tap handles/heads?

The handles will pull off. There are no handle retaining screws.

How To remove the spout and replace o'rings:
You will need a flat bladed screwdriver to undo the screw at the back of the spout.
Once the spout retaining screw is removed the spout will then pull up and out of the body.

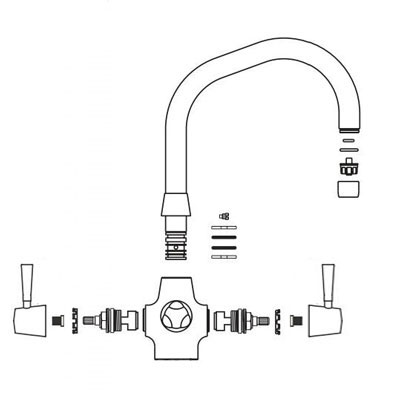

You can find the Tri Pure Crystal tap diagram/instructions below.
Any further questions contact our experienced technical team.
