Compatible Spare Parts for the Bristan Design X Pillar

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
DesignXPQA-ABAnticlockwise (to open) blue1/2" x 20 x 52mm £8.49 Tomorrow
DesignXPQA-CRClockwise (to open) red1/2" x 20 x 52mm £8.49 Tomorrow
DesignXPQA-PPair (1 x red, 1 x blue)1/2" x 20 x 52mm £16.98 Tomorrow
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SR22X-SSingleAerator chrome F22x1 12 L/Min£6.99 Tomorrow
ST17-SSingle17mm spanner£6.50 Tomorrow
STBOX-SSingleCartridge Removal Box£9.50 Tomorrow
ST0TTK-SSingleMonobloc Tap Tightening Set£10.50 Tomorrow

BRISTAN DESIGN UTILITY X SPARES
Tap Magician compatible spare parts to repair the Bristan Design Utility X Crosshead Kitchen Mixer High Neck Pillar Taps DUX HNK C.

For guidance / instructions of how to replace a tap valve step by step please click here

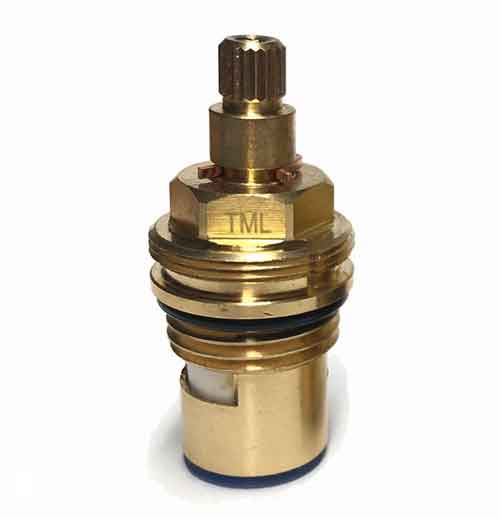

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Known by codes VS02-C20. Coding on original Valve BS5412 XZ 20.

Cartridge has 20 teeth on spline.

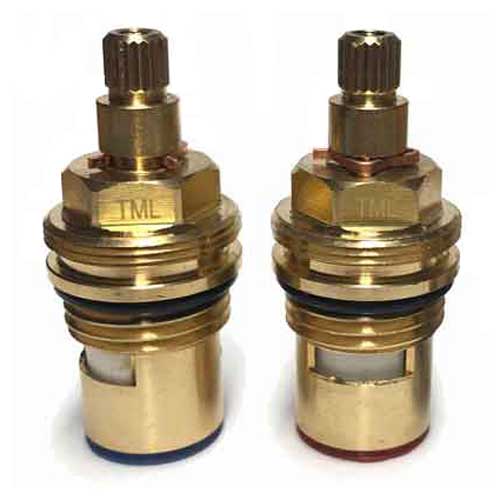

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,
If you require both then you can select "Pair"

How to remove my Bristan Design Utility X tap head handle?
Remove red/blue indices on the ends of the handle. Use crosshead screwdriver to undo screw holding handle on.
Pull tap head off and unscrew the shroud anticlockwise.

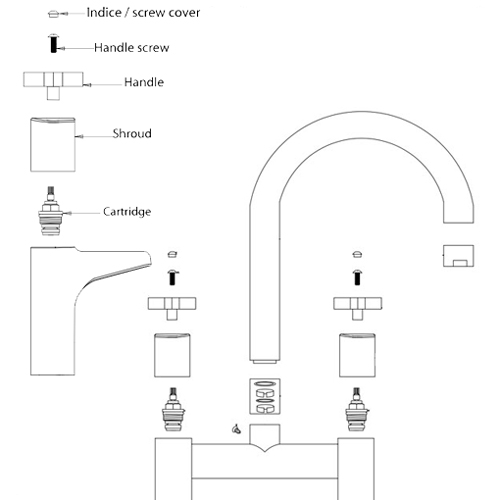

See tap diagram below



How to identify my Bristan tap? How to repair my leaking Bristan Design Utility X Crosshead tap?
Spares available for Bristan Utility tap.

Any further questions contact our experienced technical team.
