ABODE AIRO REPLACEMENT TAP SPARES
Tap Magician compatible spares to suit the Abode Airo Dual Lever Monobloc kitchen Mixer tap Chrome AT2075.
Watch our help video below for guidance / how to change your Quarter turn ceramic valves.

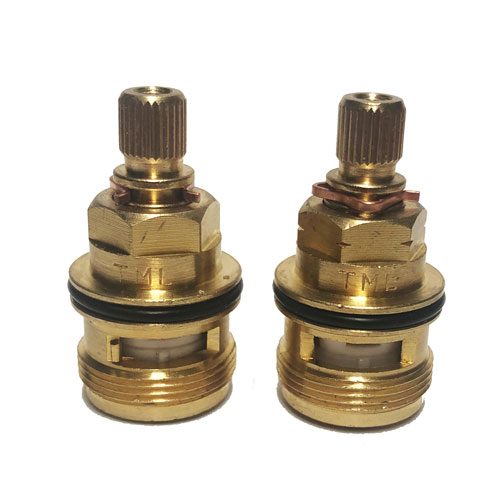

If your Airo tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by ASCDV0009 / 3794R / SP3794/ 3794R / SP3308 / 3308R.
Hot and cold valve replacements available.
Cartridge has 28 teeth on spline and uses a plastic spline adaptor for the handle. .
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

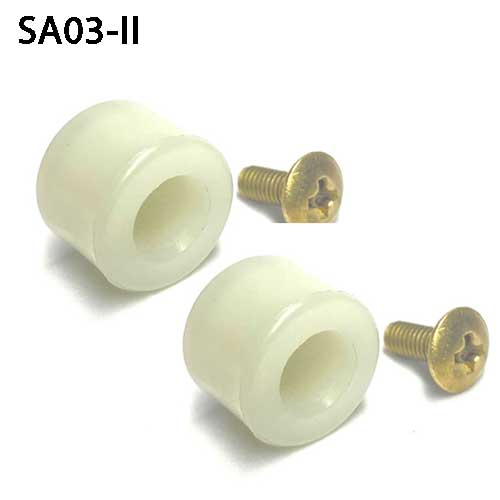

If you require a new spline adaptor for inside the handle you can purchase our SA03.
If your tap is leaking from where the spout joins the tap body (the neck) then you need to replace the O Rings inside the spout.
Replacement aerator / flow restrictor available (SR63C/CB)

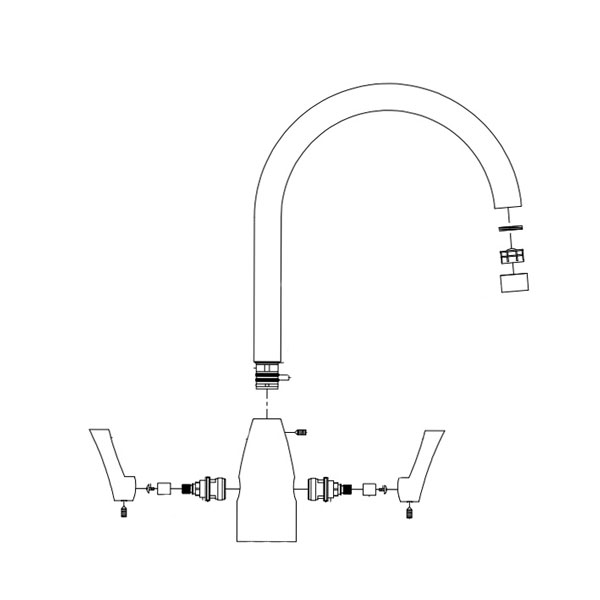

You can find the Airo tap diagram/instructions below.
Frequently asked questions about your Abode Airo tap.
How to remove my Abode Airo tap head/handle?
Loosen grub screw on the underside of handle using a 2.5mm Allen key then pull the handle horizontally away from the tap.
How to remove the Spout?
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.
How to remove your Airo cartridge?

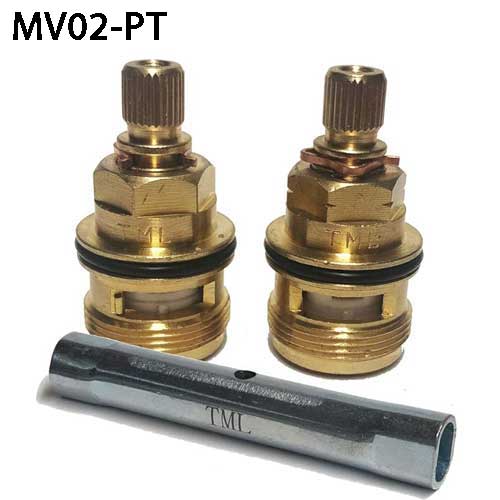

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut. Our tool has two ends.
One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.
