ABODE ESTEEM TAP SPARES
Tap Magician compatible spares to suit the Abode Esteem Monobloc kitchen Mixer tap AT1251 AT1252.

Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings.

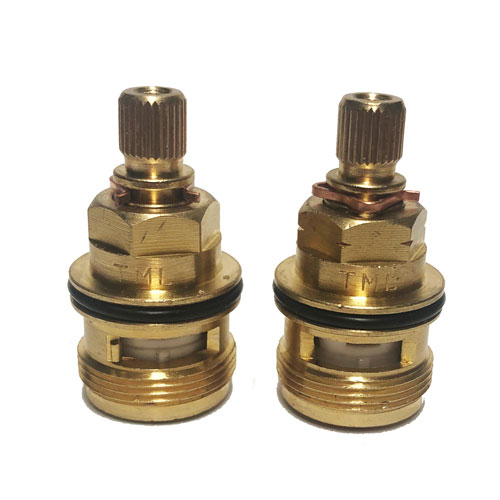

If your Esteem tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by ASCDV0009 / 3794R / SP3794/ 3794R / SP3308 / 3308R.
Hot and cold valve replacements available.

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

If you require a new spline adaptor for inside the handle you can purchase our SA03.

We now offer a replacement set of tap levers - these are a different design to the original so need to be replaced together. Our handles do not use the plastic handle adaptor. They come complete with grub screws. *Please note they are plain and not stamped H or C*

If your tap is leaking from where the spout joins the tap body (the neck) then you need to replace the O Rings inside the spout.
The original O'ring kit is known by 1239R.

Replacement end aerator available.

Frequently asked questions about your Abode Esteem tap

How to remove my Abode Esteem tap head/handle?
Loosen grub screw on the underside of handle using a 2.5mm Allen key then pull the handle horizontally away from the tap.

How to remove the Spout?
Unscrew spout locking nut and pull spout up and out of tap body.

How to remove your cartridge?

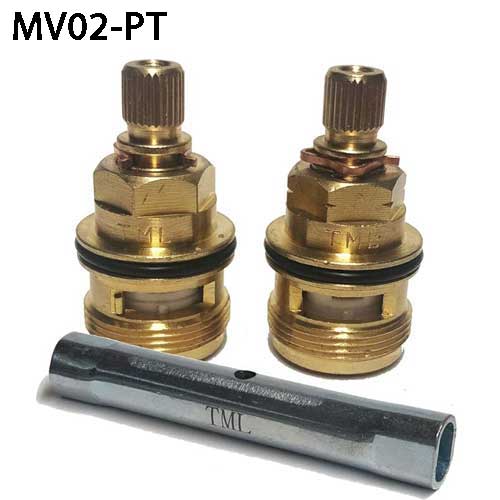

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut.
Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.



How to identify my abode tap? How to repair my leaking abode esteem tap? Spares available for Abode esteem.
Any further questions contact our experienced technical team.
