Tap Magician compatible spares / parts to repair the Abode Estimo AT1232,AT1233 Kitchen mixer tap. Watch our step by step video tutorial to guide you through replacing the cartridges.

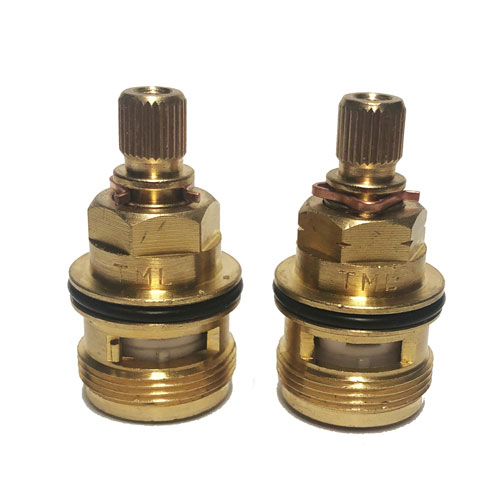

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3308R / SP3308 hot and cold valve replacements available.

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".

The Estimo tap utilises a plastic handle adaptor (SA03) original code 3537R, 3530R, SP3530.

We now offer a replacement set of tap levers - these are a different design to the original so need to be replaced together. Our handles do not use the plastic handle adaptor. They come complete with grub screws. *Please note they are plain and not stamped H or C*

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by 3473R.

Replacement aerator / flow straightener available

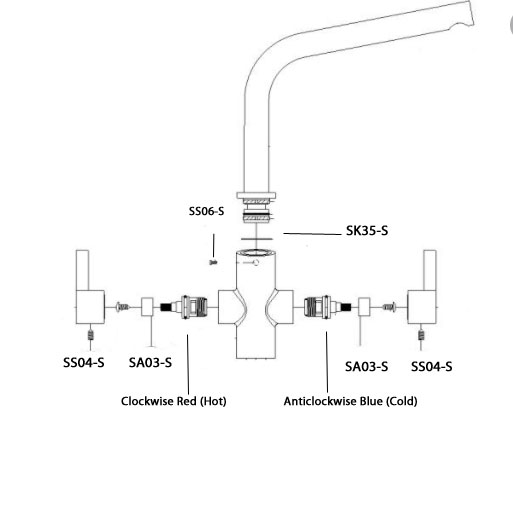

You can find the Estimo tap diagram/instructions below.
Frequently asked questions about your Abode Estimo tap

How To remove the abode estimo tap handle/ head?
There will be a grub screw on the underside of the handle. You will need 2.5mm Allen Key to undo. The handle will then pull off. You may need to use some force

How to remove the Spout?
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.

How to remove your cartridge?

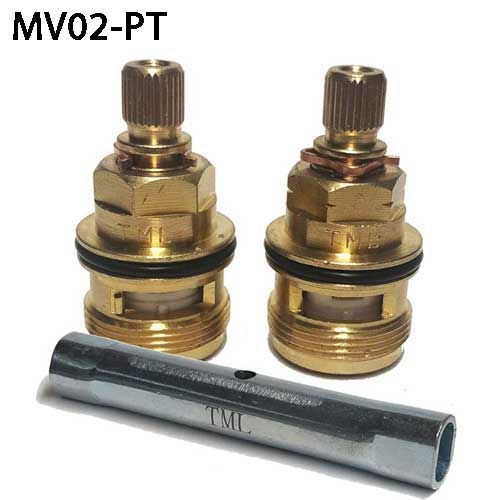

- Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body. The old valve may have two flats instead of a hex nut. Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.



How to identify my abode tap? How to repair my leaking abode tap? Spares available for Abode. Any further questions contact our experienced technical team
