ABODE FLUID TAP SPARES AT1169,AT1170
Tap Magician compatible spares / parts to repair the Abode Fluid Kitchen monobloc tap.

Watch our help video below for guidance / how to change your Quarter turn ceramic valves.



If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by ASCDV0009 / 3794R / SP3794/ 3794R / SP3308 / 3308R.
Hot and cold valve replacements available.

The Abode Fluid Cartridge has 28 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".

If you require a new spline adaptor for inside the handle you can purchase our SA03.

You can find the Fluid tap diagram/instructions below.

Frequently asked questions about your Abode fluid tap.

How To remove the tap handle/lever? Use a 2mm Allen key to remove grub screw on the underside of the handle. The handle will then pull off.

How to use our removal / fitting tool?

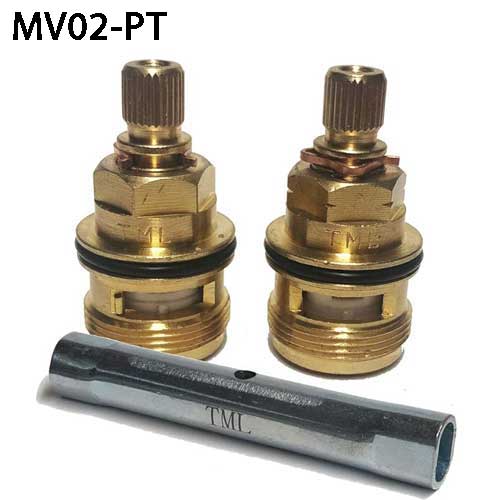

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut.
Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.



How to identify my abode tap? How to repair my leaking abode tap? Spares available for Abode. Fluid tap insert. Gland. Quarter turn valve.
Any further questions contact our experienced technical team.
