ABODE HARRINGTON TAP SPARES AT1228,AT1229
Tap Magician compatible Cartridges for the Abode Harrington Kitchen mixer tap.
Watch our help video below for guidance / how to change your Quarter turn ceramic valves.
If your abode harrington tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3794R / ASCDV0009.

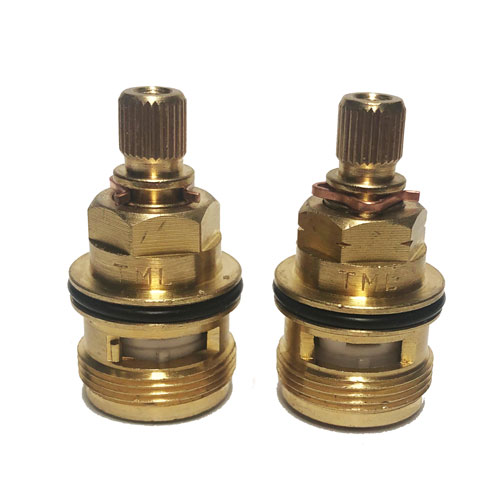

Hot and cold valves available.
Cartridge has 28 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side. If you require both then you can select "Pair".
We now offer compatible replacement lever handles.

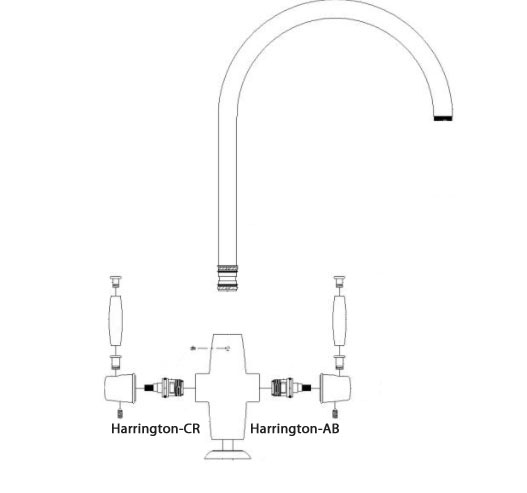

You can find the Harrington tap diagram/instructions below.
Frequently asked questions about your Abode Harrington tap.
How to remove my Abode Harrington tap head/handle?
There will be a grub screw on the underside of the handle. You will need a 2.5mm allen key.
If you require an allen key to remove the handle then you can purchase our Allen Key Pack (SK01-S). The handle will then pull off.
How to remove the Spout?
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.
How to remove your cartridge?

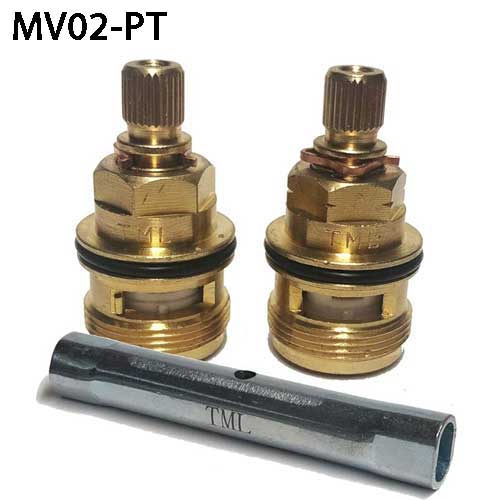

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut.
Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.
How to identify my abode tap? How to repair my leaking abode Harrington tap? Spares available for Abode Harrington. Tap Inserts. Tap Glands.
Any further questions contact our experienced technical team.
