ABODE LINEAR FLAIR SPARE PARTS
Watch our help video below for guidance / how to change your Quarter turn ceramic valves.


Tap Magician compatible spares to suit the Abode Linear Flair AT1220 AT1221 taps

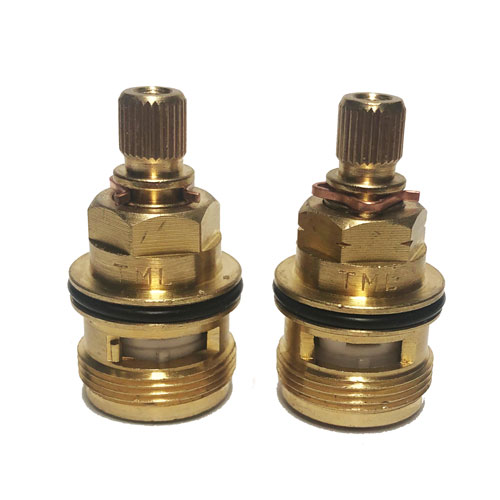

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3794R / ASCDV0009. Hot and cold valves available

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"

Replacement aerator available

How To remove the handle: there will be a grub screw on the underside of the handle. If you require an allen key to remove the handle then you can purchase our Allen Key Pack (SK01-S). The handle will then pull off.

Your tap handle may utilise a plastic handle adaptor / tap head carrier. Sometimes this can wear or break and we can supply this part if you require a new one (Our part SA03-S). Original tap handle adaptor code SP3530

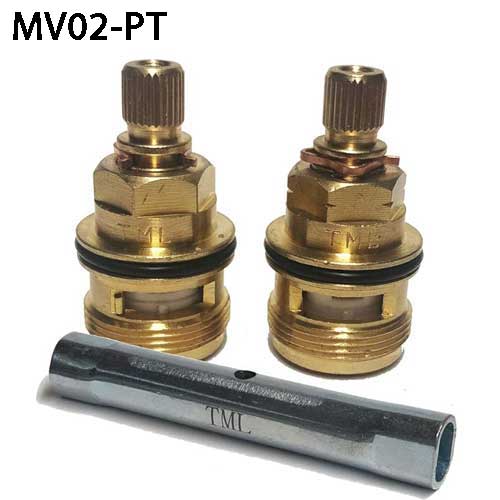

How to remove your cartridge - Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body. The old valve may have two flats instead of a hex nut. Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.

If your tap is leaking from where the spout joins the tap body (the neck) then you need to replace the O Rings inside the spout. Our kit is compatible with the 3473R.

How to remove the tap spout? Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.

You can find the Linear Flair tap / instruction diagram below.
