ABODE ORBIT TAP SPARES
Tap Magician compatible spares / parts to repair the Abode Orbit Kitchen Mixer Tap Models AT1169 AT1170 AT1177 AT1178.

Watch our help video below for guidance / how to change your Quarter turn ceramic valves.

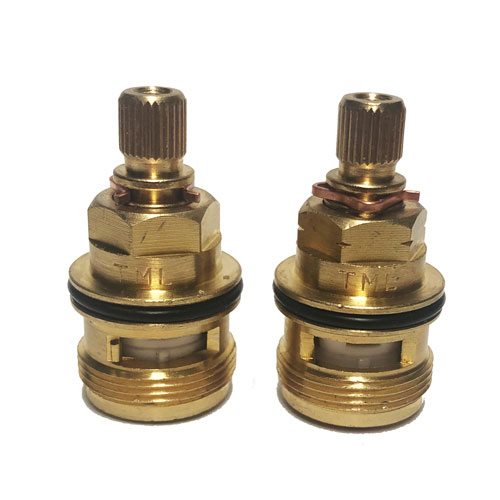

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3794R / ASCDV0009.
Hot and cold valve replacements available.

Cartridge has 28 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 1425R.

Replacement aerator available

How to remove the spout:
Use 2.5mm allen key to undo screw at the back of the spout. Pull spout up and out of tap body.

How To remove the Abode Orbit tap handle:
Use Allen key to remove grub screw on the underside of the handle. The handle will then pull off.

How to remove your tap cartridge

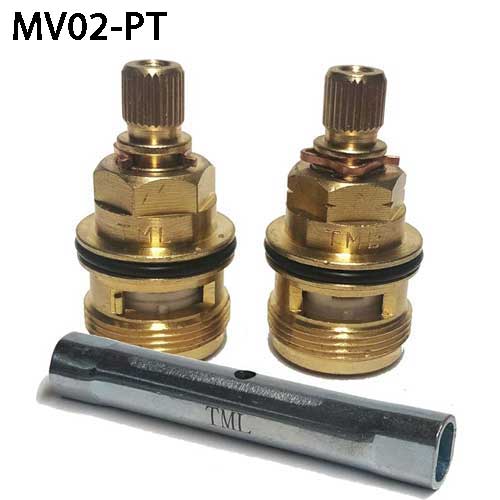

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut.
Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.

If you require a new antisplasher / aerator this is our part SR63C/CB (available in Chrome or brushed).
Original codes known by 133.0068.762 SP1263 /1263R your original part may have Neoperl stamped around the edge.

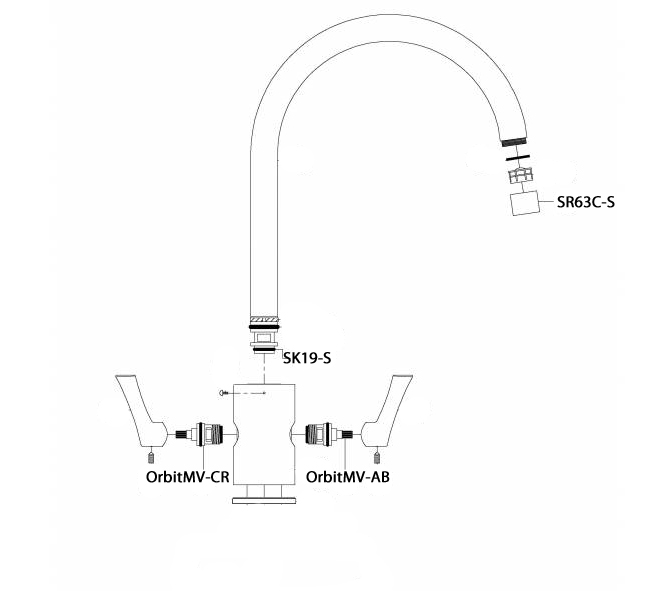

You can find the Orbit Monobloc tap diagram/instructions below.




How to identify my Abode tap? How to repair my leaking Abode Orbit tap? Spares available for Abode Orbit.
Any further questions contact our experienced technical team.
