ABODE PICO TAP SPARES
Tap Magician compatible spares / parts to repair the Abode Pico Kitchen mixer AT1177 and AT1178 taps.

Watch our video below for guidance / how to change your Quarter turn ceramic valves and Spout O Rings.

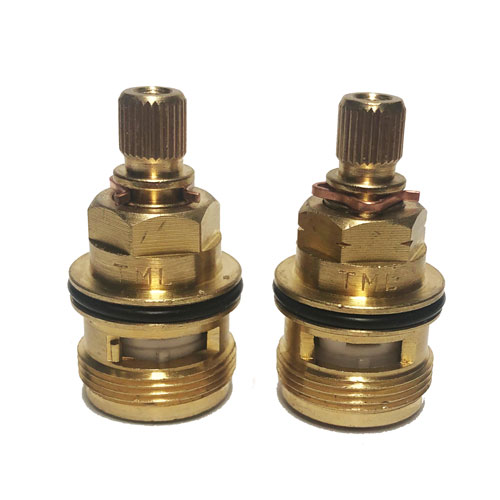

If your Pico tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by 3794R / ASCDV0009.
Hot and cold valve replacements available

Cartridge has 28 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".

If you require a new antisplasher /aerator this is our part SR63C/CB (available in Chrome or brushed).
Original codes known by 133.0068.762 SP1263 /1263R your original part may have Neoperl stamped around the edge.

If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
When you replace the new rubber seals they need greasing with a silicone grease.
The original O'ring kit is known by 1239R.

We now offer a replacement set of tap levers - these are a different design to the original so need to be replaced together. Our handles do not use the plastic handle adaptor. They come complete with grub screws. *Please note they are plain and not stamped H or C*

How to remove tap spout:
Undo locking nut at base of spout. Pull spout up and out of tap body.

How To remove the Abode Pico tap handle:
Use a 2.5mm Allen key to remove grub screw on the underside of the handle. The handle will then pull off.

How to remove your cartridge?

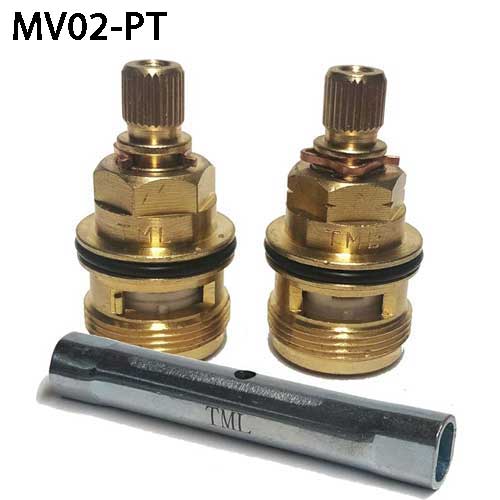

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut.
Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.

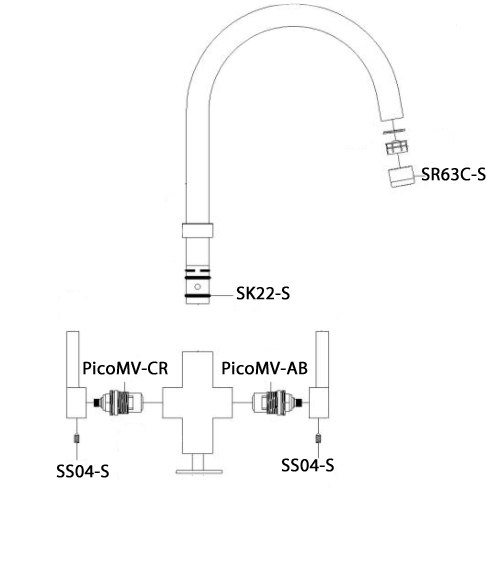

You can find the Abode Pico/ instruction diagram below.



How to identify my Abode tap? How to repair my leaking Abode Pico tap? Spares available for Abode Pico.
Any further questions contact our experienced technical team.
