Compatible Spare Parts for the Abode Quantic

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
QuanticMV-CRClockwise (to open) red39mm Mini Valve£12.99 Tomorrow
QuanticMV-ABAnticlockwise (to open) blue39mm Mini Valve£12.99 Tomorrow
QuanticMV-PPair (1 x red, 1 x blue)39mm Mini Valve£25.98 Tomorrow
QuanticMV-PTPair with fitting tool39mm Mini Valve£35.97 Tomorrow
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SR24C-SSingleAerator chrome£6.00 Tomorrow
SR24BLACK-SSingleAerator Matte Black£14.99 Tomorrow
SK35-SSingleSpout O Ring Kit £6.99 Tomorrow
SS04-SSingleM5 handle grub screw£3.00 Tomorrow
SS06-SSingleM5 x 6mm round head grub screw£3.49 Tomorrow
SK01-SSingleSet of Allan Keys£1.99 Tomorrow
ST03-SSingleBox spanner for Mini Valve£9.99 Tomorrow
SA03-SSingleHandle Adaptor & Screw £3.50 Tomorrow
ST0TTK-SSingleMonobloc Tap Tightening Spanner Set£10.50 Tomorrow

Tap Magician compatible spares to suit the Abode Quantic AT2070 taps

Watch our video below for guidance / how to change your Quarter turn ceramic valves.

If your Abode Quantic tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3794R / ASCDV0009. Hot and cold valves available

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"

How To remove the Abode Quantic Tap handle: there will be a grub screw on the underside of the handle (SS04-S). If you require an allen key to remove the handle then you can purchase our Allen Key Pack (SK01-S). The handle will then pull off.

Your tap handle utilises a plastic handle adaptor / tap head carrier. Sometimes this can wear or break. If you require a new one (This is our part SA03-S). Original tap handle adaptor code SP3530

How to remove your Quantic cartridge - Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body. The old valve may have two flats instead of a hex nut. Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.

If your Quantic tap is leaking from where the spout joins the tap body (the neck) then you need to replace the O Rings inside the spout. Our Seal kit is compatible with the 3473R. How do I remove the Abode Quantic SPout?
To remove the spout: Use 2.5mm allen key to undo screw (SS04-S) at the back of the spout. Pull spout up and out of tap body

We have a replacement tap aerator/nozzle/antisplasher available (SR24C)

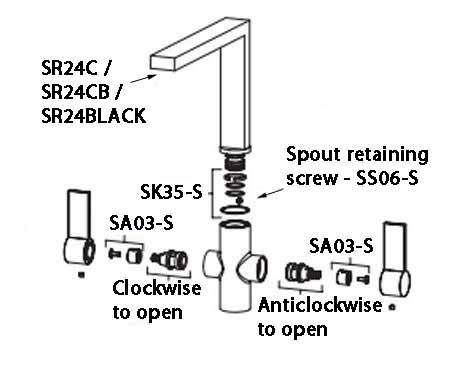

You can find the Abode Quantic tap / instruction diagram below.
