ASTRACAST QUANTUM TAP SPARES
Tap Magician compatible parts to repair the Astracast Quantum TP1003 / TP1002 Professional Twin Lever C/B Kitchen Sink Mixer Tap.

Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.

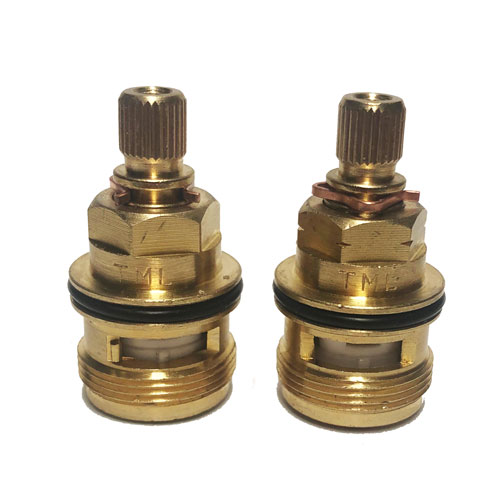

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.

Cartridge has 28 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

How to remove your cartridge:

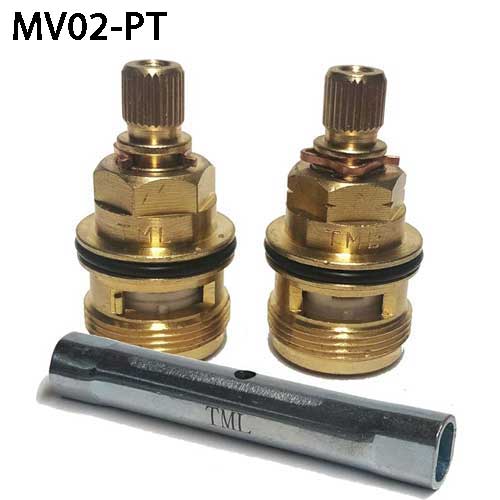

Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body.
The old valve may have two flats instead of a hex nut. Our tool has two ends.
One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.

Your tap handle may utilise a plastic handle adaptor / tap head carrier.
Sometimes this can wear or break and we can supply this part if you require a new one (Our part SA03-S).

How To remove the handle:
Use a 2.5mm Allen key to remove grub screw on the underside of the handle (SK01-S).
Once removed the handle will then pull off.
