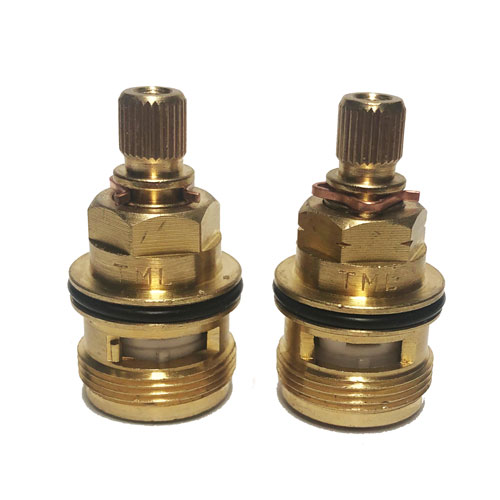

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original spare part codes known by ASCDV0009 / 3794R / SP3794/ 3794R / SP3308 / 3308R.
Hot and cold valve replacements available.

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair"

If you need a new screw for the handle this is our SS04_S.

If your tap is leaking from round the neck (where the spout joins the tap body) then the seals inside the spout need replacing.
You need to replace all parts from the O'Ring seal kit The original Oring kit is known by 3668R.
You should apply silicone grease to the o rings before replacing the spout.

If you require a new antisplasher / aerator this is our part SR18C (available in Chrome only).
Original codes known by 1268R.

Replacement compatible chrome lever handles available

How to remove my Rosolina tap head / handle and replace the cartridge?
1. Remove the handle retaining screw by using a 2.5mm allen key.
2. You can then pull the handle off.
3. You will then need a crosshead screwdriver to remove the brass screw holding the white plastic handle insert onto the valve.

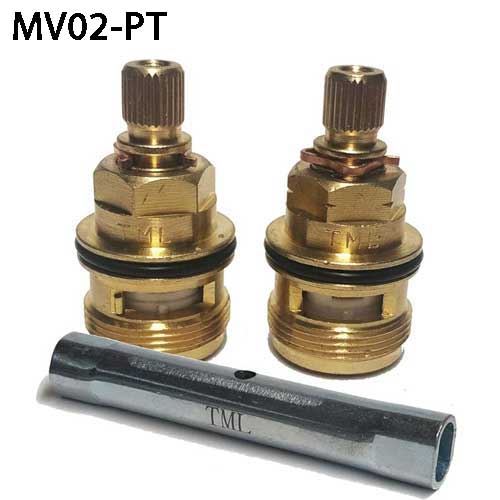

Once you’ve removed this, you can unscrew the valve (anti-clockwise) by using a 14mm box spanner. Our Cartridge Valve removal tool (ST03) is available to enable easy removal and fitting of the cartridges which are recessed into the tap body. The old valve may have two flats instead of a hex nut. Our tool has two ends. One end to remove the cartridge with two flats and one end to remove/fit new cartridge with hex nut.
4. Fit the replacement cartridge by screwing in clockwise.
5. Replace the tap lever.

Your tap handle may utilise a plastic handle adaptor / tap head carrier. Sometimes this can wear or break and we can supply this part if you require a new one (Our part SA03_S).
Original tap handle adaptor code SP3530 / 133.0153.218.

How to remove the tap spout and replace the O Rings?
To replace the o rings, you will first need to remove the spout retaining screw by using a 2.5mm allen key.
You can then lift the spout out and replace the o rings at the base with our SK18_S o'ring kit.

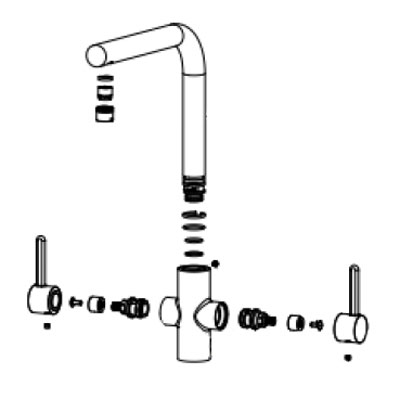

You can find the Rosolina L Spout tap / instruction diagram below.
Frequently asked questions about your Carron Phoenix Rosolina tap.

How to identify my Carron Phoenix tap? How to repair my leaking Carron Phoenix Rosolina tap? Spares available for Carron Phoenix Rosolina.
Any further questions contact our experienced technical team.
