MAGNET ARCHER DUAL FLOW TAP SPARES

Tap Magician compatible 1/4 turn replacement ceramic discs cartridges to fit Magnet Archer Dual Flow Tap 62415409

If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges.
Original cartridge coding PAINI ASME A112.18.1UPC ANSI NSF61 KK G90.

Archer cartridge has 20 teeth on spline. Hot and cold valve replacements available.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side.
If you require both then you can select "Pair".

Replacement spout available as SPOUT545. Complete with orings and aerator. Known by spare part code UKH3S.

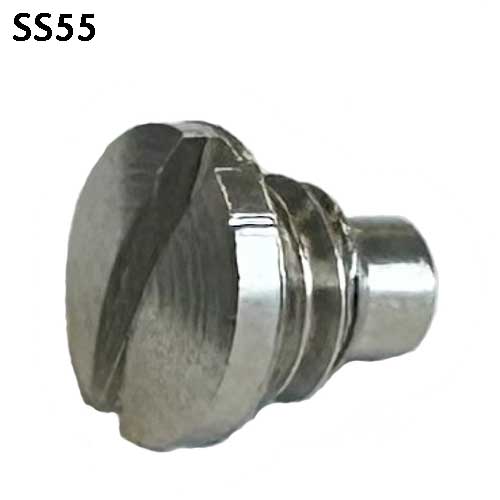

Spout retaining screw available as SS55-S.

Compatible handle lever head reviver kit available as complete with indice and retaining screw.

How to remove the Magnet Archer handle lever head:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the end screw cap cover
Step 2. Use a crosshead screwdriver to undo the handle retaining screw screw
Step 3. Pull off the lever handle
Step 4. Use 17mm or adjustable spanner to undo cartridge anticlockwise
Step 5. Screw in the new cartridge clockwise
Step 6. Tighten the cartridge enough to seal, but avoid over-tightening

Watch our how to video for further general guidance on removing tap handles and replacing tap cartridges.
