Compatible Spare Parts for the Wren Phoenix

Please select from the available product options shown below

Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time

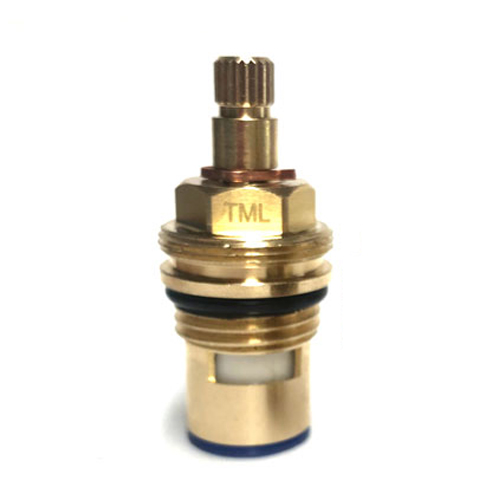

PhoenixQA-ABAnticlockwise (to open) blue1/2" x 20 x 53mm£12.99 Tomorrow

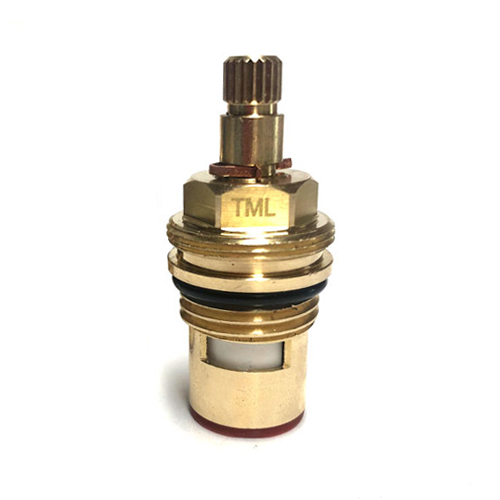

PhoenixQA-CRClockwise (to open) red1/2" x 20 x 53mm£12.99 Tomorrow

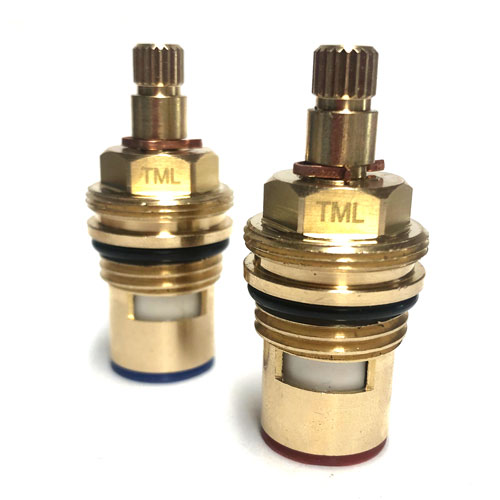

PhoenixQA-PPair (1 x red, 1 x blue)1/2" x 20 x 53mm£25.98 Tomorrow
Product CodeProduct OptionsDescriptionUnit PriceBuyDespatch Time
SV40-PPair (1 x red, 1 x blue)1/2" x 55mm with 40 spline £33.00 Tomorrow
SK13-SSingleSpout O' Ring Kit£4.25 Tomorrow
SL05-SSingleLubricant£3.50 Tomorrow
SR18C-SSingleAerator chrome male thread M18£6.00 Tomorrow
SA16-SSingle40 teeth Spline adaptor£6.00 Tomorrow
SH44C-SSingleHandle COLD (requires SA16-S)£17.78 Tomorrow
SH44H-SSingleHandle HOT (Requires SA16-S)£17.78 Tomorrow
SK01-SSingleSet of Allan Keys£1.99 Tomorrow
SF048-SSingleChrome Plinth£9.99 Tomorrow

Tap Magician replacement ceramic cartridges and spare parts for Wren Phoenix Chrome Kitchen mixer tap TA.WRN.035.

If your tap is dripping or leaking out of the end of the spout then you need to replace the ceramic quarter turn tap cartridges.
Hot and cold replacement cartridges available.
You will need our Anticlockwise for the cold side and Clockwise for the hot side.

Original cartridge coding PAINI ASME A112.18.1UPC ANSI NSF61 KK G90.
Compatible with tap model number 78CR490599BF4WN.

Your cartridge uses a handle adaptor which is fitted on the spline (see photo below).
If this is damaged or you cannot remove it you can purchase a new adaptor which is our SA16-S.

If your tap is leaking around the base/bottom of the spout, where the spout joins the tap body (the neck),
then you need to replace the spout o'rings (also called spout washers or seals).
You must apply a suitable silicone grease to the new orings (SL05-S).

Replacement handles now available (SH44C-S,SH44H-S) which require the SA16-S handle adaptor.

Aerator spout nozzle/ flow restrictor available (SR18C-S)

Chrome tap base plinth available SF048-S.

Watch our video for a step by step tutorial on replacing your cartridges

How do I remove my Wren Phoenix handle / head?
Use 2.5mm allen key to undo the grub screw on the underside of the tap handle.
Once removed the tap handle will pull off.

How do I replace the tap cartridge?
First make sure you turn the water off. Use 17mm or adjustable spanner to undo cartridge (it will unscrew anticlockwise).
Fit new cartridge (clockwise) and replace the tap handle.

How do I remove the spout?
Use 2.5mm allen key to undo spout retaining screw. Pull spout up and away from tap body.

Cartridges may be called valves, inserts, tap glands.

How to identify my Wren Phoenix tap? How to repair my leaking Wren Phoenix tap? Spares available for Wren Phoenix.
Any further questions contact our experienced technical team.
