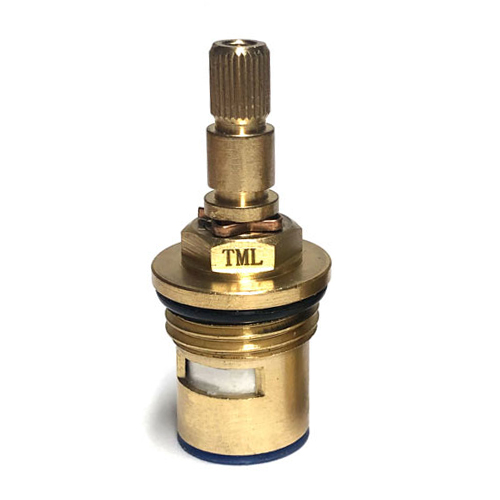

Tap Magician replacement Tap Magician replacement cartridge for the Rangemaster Estuary kitchen mixer tap TES1BF,TES1CM,TES1.
Watch our help video below for guidance / how to change your Quarter turn ceramic valves.

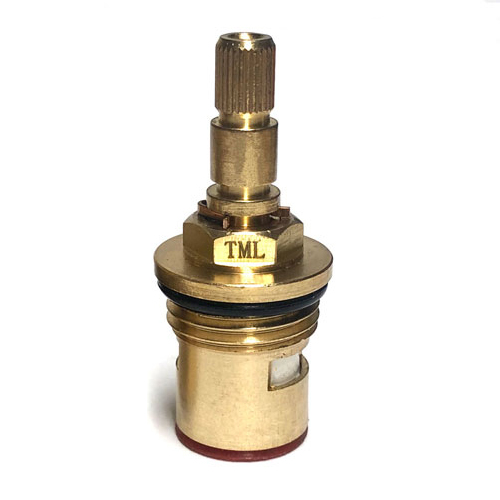

Please note the internal cartridges have changed over the years. This is the later version with 28 teeth on the spline.
There is no way to identify from the tap itself which cartridge you need, you will need to count the teeth on the spline. If you need the 20 spline cartridge please
clickhere
If your tap is dripping or leaking out of the spout then it is time to replace / change the quarter turn ceramic disc cartridges. Original spare part codes known by 3547R, hot and cold valve replacements available

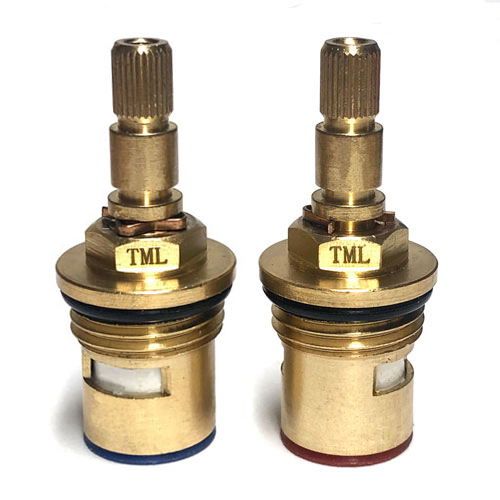

Cartridge has 28 teeth on spline. You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair"
If your tap is leaking from the neck (where the spout joins the tap body) then the seals inside the spout need replacing. When you replace the new rubber seals they need greasing with a silicone grease. The original O'ring kit is known by 1239R (ours is SK22)
Replacement aerator insert available SR00-S
How to remove the handle: Loosen grub screw on the underside of handle using a 2mm allen key (SK01-S). Once this is undone the handle will pull off. We have a replacement handle grub screw available if you need a new one
How to replace the spout o-rings: Whilst holding body unscrew the spout locking collar then pull the spout vertically away from the body.
You can find the Regent tap diagram/instructions below.
Cartridges can be known by glands, inserts, ceramic disk valve
