1810 CURVATO TRIO 3-WAY FILTER TAP SPARES
Tap Magician replacement spares for the Curvato 3 way kitchen mixer filter tap.

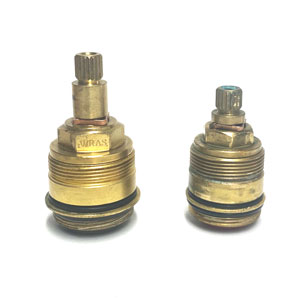

**** Please note the cartridges may come out with bushes attached to them. See Image below.
You will need to remove the bushes and re use these on the new cartridge. We cannot supply the bushes.

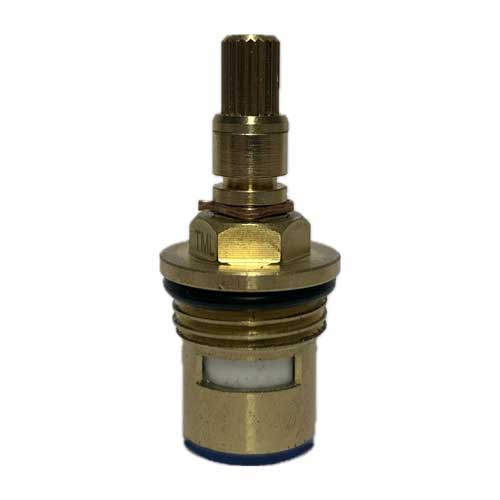

The hot and cold water cartridge has 20 teeth on spline.
You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side,
If you require both then you can select "Pair".

Mini Front Filter Cartridge (MV42H)

We can supply a compatible inlin pure water filter cartridge which will replace the complete cartridge housing. The filter pipes will connect directly in to our cartridge. If replacing your original cartridge with ours you will need to order the cartridge with the clip so you can attach it to the wall. Our Water Filter Cartridges are manufacturerd in the UK and are WRAS Approved.

How To remove the handle:
Use a 2.5mm Allen key to remove grub screw on the underside of the handle.
The handle will then pull off. With the handle removed unscrew the shroud anticlockwise to reveal the cartridge.
Replacement handle and spout retaining screw available as SS04-S.

If your tap is leaking where the spout joins the base of the tap then you need to replace the o'rings inside the swivelling spout.

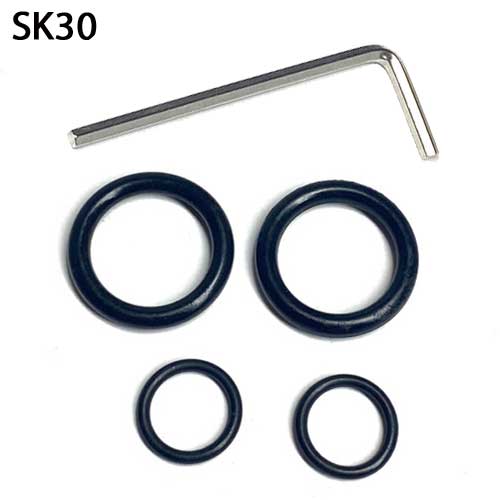

There are 4 black O'rings which need to be replaced which is our SK30-S oring kit.
The spout O'Rings require silicon grease when being replaced. 5ml pot of potable silicon grease available as SL05-S.

Replacement anti-splasher spout aerator (end nozzle) available as SR02OL and SR02OLCB
Available in chrome and brushed nickel.

Watch our video below for guidance / how to change your quarter turn ceramic valves.
Watch our YouTube Video on how to separate the conversion bush.
