ASTRACAST AGENA TAP SPARES
Replacement spares for Astracast Agena kitchen mixer monobloc tap model TP0767 TP0767W TP0768.

Watch our video below for guidance / how to change your Quarter turn ceramic valves.

If your Agena tap is dripping from the spout then its time to replace the internal cartridges.

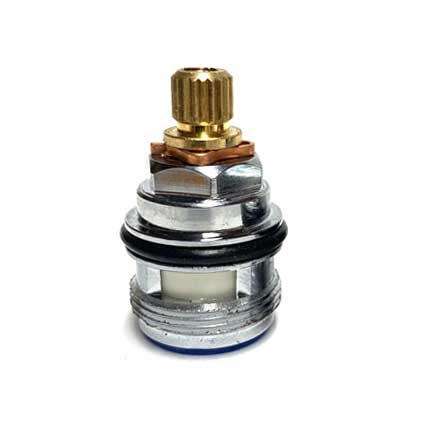

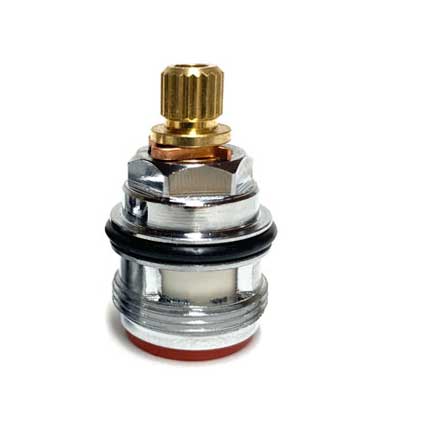

Our cartridges Spare cartridge code KSP0053. May have fitting issue with the TP0768 model.

If your tap is leaking around the neck (where the spout joins the body) then you need to replace the seals inside the spout.
There is two O Rings which need replacing. You should grease the New orings once fitted.

How to remove the handle:
Before replacing the cartridge you will need to turn the water off.
Step 1. Remove the handle retaining screw, by using a 2.5mm allen key.
Step 2. Pull the handle away from the tap body.
Step 3. Use an adjustable spanner to undo the cartridge counterclockwise
Step 4. Replace the cartridge and reverse the steps to refit the handle.
The replacement cartridge has a 14mm nut.

How to remove tap spout and replace orings:
Step 1. Use 2.5mm allen key to undo screw at the back of the spout.
Step 2. Pull Spout up out of tap body.

SCREW: Our SS04 screw fits both the handle and spout.

If you require a new antisplasher /aerator this is our part SR63C (Chrome) SR63CB-S (Brushed).
