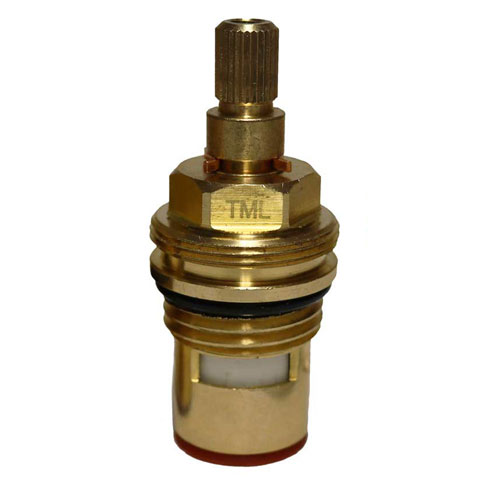

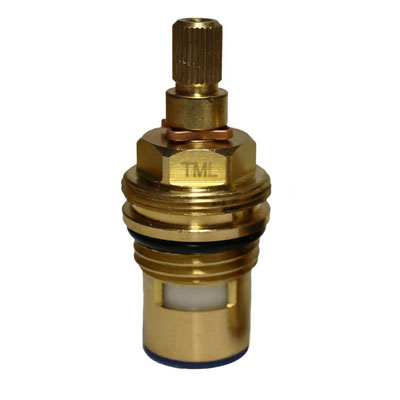

Replacement ceramic disc tap cartridges for the Abode Darley Kitchen Mixer tap ZP1012 / ZP1013.
Cartridge has 28 splines. Hot and Cold available.

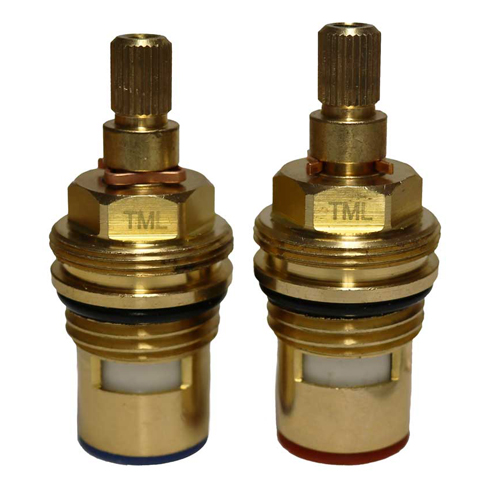

You will require our Anticlockwise open cartridge for the cold side, and clockwise open for the hot side, If you require both then you can select "Pair".
Original spare part codes for the cartridges 1427R.
If you require a new handle then you can purchase our SH59R which is compatible with 3259R.
Please note our handles do not have H or C on them. This comes with a screw.
If you misplaced your screw you can purchase these separately for the handle. Product code SS81-S.
We have Replacement handles/levers available in shiny chrome or brushed
Watch our help video below for guidance / how to change your Quarter turn ceramic valves.
Abode Darley Frequently asked questions
How to I remove the Abode Darley tap handle?
Use 2mm allen key to undo handle. The grub screw is located on the underside of the handle. You can pull the lever forwards to access the screw at the back if you need more space.
How do I know if need the adaptor bush?
Until you remove the cartridge from the tap you will not know if you need this part. This is because sometimes the bush gets corroded to the tap and remains in the tap body, and other times it comes out corroded to the tap cartridge.
Can I remove the adaptor bush from the old cartridge?
Yes you can but it can be very hard to remove due to corrosion. You can try using very hot water, followed by cold water over it, to help break the corrosion seal. The bush unscrews from the cartridge anticlockwise. You will likely ed to use some grips or put it in a vice to remove it. If you cannot separate it you will need to replace the bush.
How do I remove the spout and replace the o'rings inside the spout?
Use 2.5mm allen key to undo grub screw at the back holding the spout in place.
pull spout up and out of the tap body. You can watch our How to video above.
What size spanner do I need to remove the brampten tap cartridge?
You will need a 17mm or an adjustable spanner
You can find the Brampton tap / instruction diagram below.
